3.  HANDLING PRECAUTIONS FOR ELECTRICAL

PARTS AND WIRING

To  ensure  safety  and  prevent  damage  to  the  machine  and

surrounding equipment, obey the following precautions in handling

electrical parts and wiring.

IMPORTANT

• Check electrical wiring for damage and loosened

connection every year. To this end, educate the customer
to do his or her own check and at the same time
recommend the dealer to perform periodic check for a fee.

• Do not try to modify or remodel any electrical parts and

wiring.

• When removing the battery cables, disconnect the negative

cable first. When installing the battery cables, connect the
positive cable first.

WSM000001GEG0062US0

[1] WIRING

• After  installing  wiring,  check  protection  of  terminals  and

clamped condition of wiring.

WSM000001GEG0070US0

• Securely tighten wiring terminals.

WSM000001GEG0063US0

• Do not let wiring contact dangerous part.

WSM000001GEG0064US0

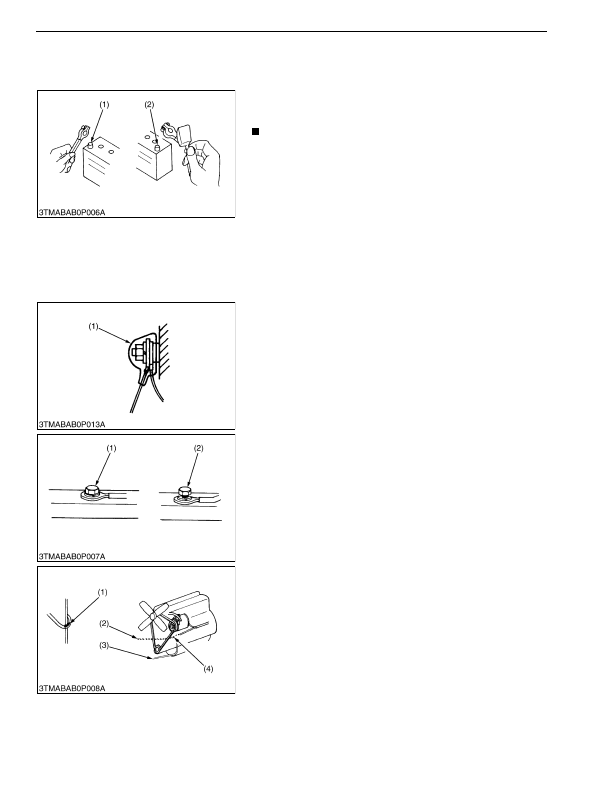

(1) Negative Terminal

(2) Positive Terminal

(1) Cover

(Securely Install Cover)

(1) Correct

(Securely Tighten)

(2) Incorrect

(Loosening Leads to damaged

Contact)

(1) Dangerous Part (Sharp Edge)

(2) Wiring (Incorrect)

(3) Wiring (Correct)

(4) Dangerous Part
