TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S27

[3]  HYDROSTATIC TRANSMISSION (HST)

(1) Electrical Adjusting [Adjustment with Electronic Instrument Panel

(Intellipanel)]

Adjustment of HST Sensor (HST Pedal and Range Shift Lever
Fine-adjustment Mode)

NOTE

• When one of the followings is replaced, this adjustment is

required. (Main ECU, HST pedal sensor, swashplate
position sensor, range gear shift sensor, HST proportional
valve (Forward and Reverse)).

(Tractor Condition)

• Hand Throttle Lever : Idling position

• Parking Brake : Engaged position

• HST Pedal : Neutral Position

• Range Gear Shift Lever : Neutral Position (between

L

 and

M

)

• Auto Throttle Advance function :

"OFF"

1. While  holding  down  the  display  mode  switch  (2),  turn  on  the

main switch.

2. Mode selection display

(a)

 is indicated on the LCD (1).

3. Depress the HST pedal

"Fully in forward"

 position, then

"Fully

in reverse"

 position.

4. Start the engine at idling speed.

5. Press  the  display  mode  switch  (2)  and  the  buzzer  rings  and

marked display moves.

6. Select the Mode

"K"

.

7. Hold down the display mode switch (2) for more than 2 seconds.

8. When

"HST Fine-adjustment Mode"

 is displayed

(b)

, release

the display mode switch (2).

NOTE

• When the engine is not setting at the idling position or the

parking brake is not engaged. "HST Fine-adjustment
Mode" display (b) does not change.

• When "Out of Setting Position ERROR No. ** (71, 72 or 73)"

is displayed (k), refer to the below chart.

9.

"Hold button for 3s more"

 is displayed

(c)

.

Hold down the display mode switch (2) for more than 3 seconds.

10.

"Step-01"

 is displayed

(d)

.

Keep the HST pedal at the

"Full forward"

 position.

11. Wait until

"Step-02"

 is displayed

(e)

. Then proceed to the next

step.

(To be continued)

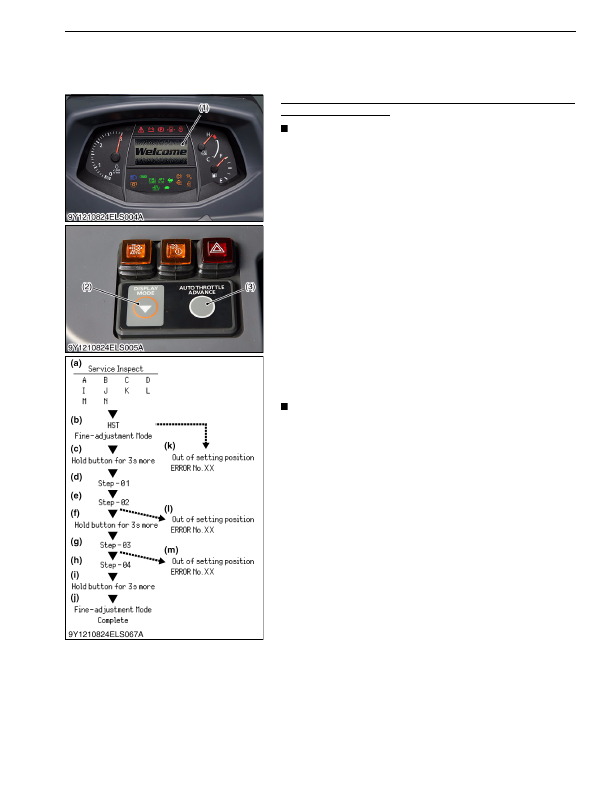

(1) LCD (Liquid Crystal Display)

(2) Display Mode Switch

(3) Auto Throttle Advance Switch

(a) Mode Selection Display
(b) Information Display
(c) Setting Display-1
(d) Adjusting Display-1
(e) Setting Display-2

(f)

Adjusting Display-2

(g) Setting Display-3
(h) Setting Display-4
(i)

Adjusting Display-3

(j)

Correct Preserving Display

(k) Error Display-1
(l)

Error Display-2

(m) Error Display-3

KiSC issued 03, 2016 A
