TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S30

(2) Hydraulic Checking and Adjusting

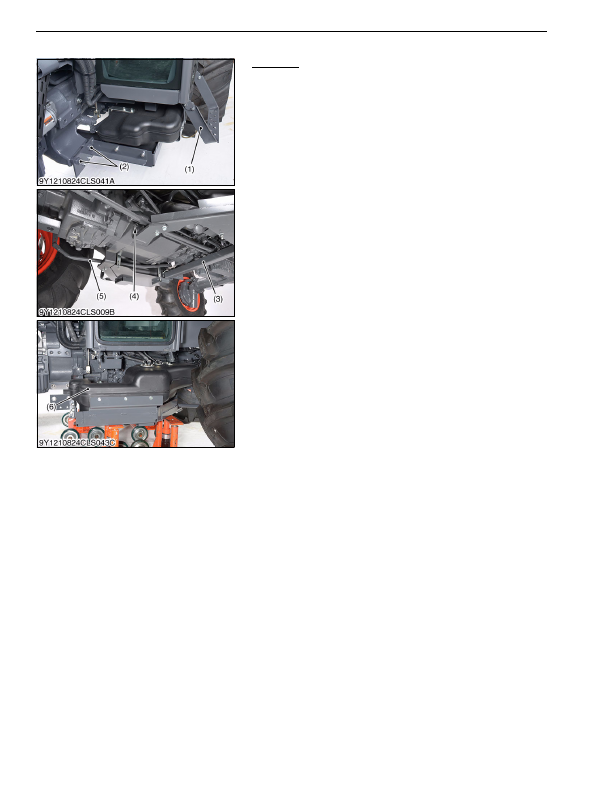

Fuel Tank

1. Remove the left step (1).

2. Remove the fuel hose cover (3).

3. Remove the brake rod L.H. (5).

4. Place the disassembling stands under the left fuel tank L.H. (6).

5. Remove the front (2) and rear support mounting screws (4) of

the left fuel tank L.H. (6).

6. Lower the fuel tank L.H. (6) together with the disassembling

stands.

7. Reattach the brake rod L.H. (5).

9Y1210824TRS0189US0

(1) Step

(2) Front Support Mounting Screw

(3) Fuel Hose Cover

(4) Rear Support Mounting Screw

(5) Brake Rod L.H.

(6) Fuel Tank L.H.

KiSC issued 03, 2016 A
