TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S45

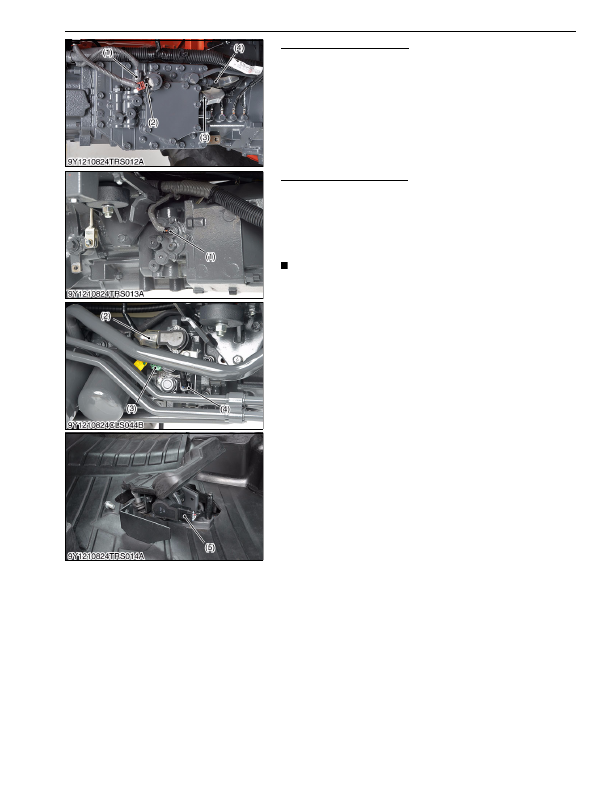

Electric Connector for GST

1. Disconnect the pressure switch connector (1), proportional

reducing valve connector (2), solenoid valve connector (3), oil

temperature sensor connector (4).

9Y1210824TRS0005US0

Electric Connector for HST

1. Remove the Hi-Lo solenoid valve cover.

2. Disconnect the Hi-Lo solenoid valve connector (1).

3. Remove the proportional valve cover.

4. Disconnect the swashplate position sensor connector (2) and

proportional valve connectors (3), (4).

5. Remove the HST pedal sensor connector (5).

IMPORTANT

• In installing the connector of the proportional valve, pay

attention to the color of the connector to ensure correct
installation.

9Y1210824TRS0006US0

(1) Pressure Switch Connector

(2) Proportional Reducing Valve

Connector

(3) Solenoid Valve Connector

(4) Oil Temperature Sensor Connector

(1) Hi-Lo Solenoid Valve Connector

(2) Swashplate Position Sensor

Connector

(3) Proportional Valve Connector

(Green)

(4) Proportional Valve Connector

(Gray)

(5) HST Pedal Sensor Connector

KiSC issued 03, 2016 A
