TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S58

6. DISASSEMBLING AND ASSEMBLING

[1] MANUAL TRANSMISSION

(1) Clutch Housing

Hydraulic Pipe

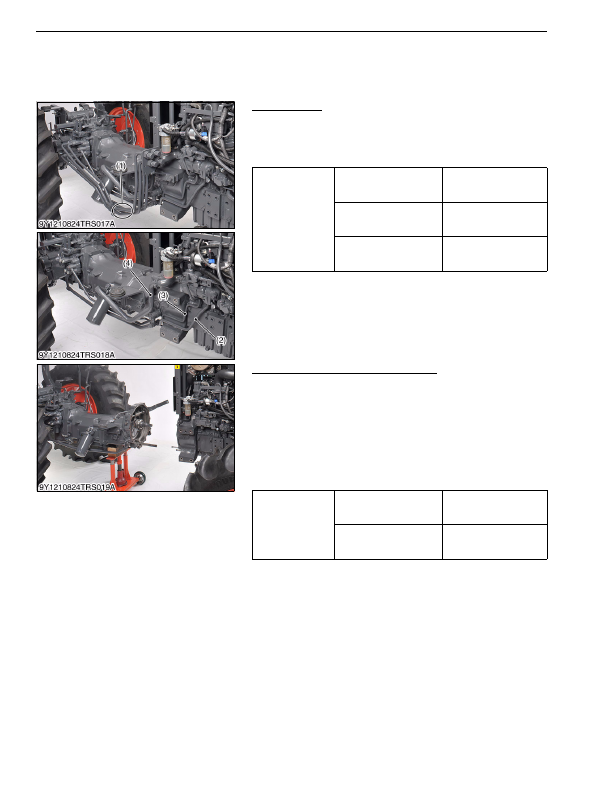

1. Remove the front loader pipes (1).

2. Disconnect the suction pipe (4).

3. Remove the main delivery pipe (2) and PTO delivery pipe (3).

(When reassembling)

9Y1210824TRS0009US0

Separating Engine and Clutch Housing

1. Place  the  disassembling  stands  under  the  engine  and  clutch

housing.

2. Remove the engine and clutch housing mounting screws and

nuts.

3. Separate the engine and clutch housing.

(When reassembling)

• Apply grease to the spline of clutch shaft.

• Apply liquid gasket (Three Bond 1211 or equivalent) to joint face

of the flywheel housing and clutch housing.

9Y1210824TRS0010US0

Tightening torque

Joint bolt for main delivery

pipe

118 to 137 N·m

12.0 to 14.0 kgf·m

86.8 to 101 lbf·ft

Joint bolt for PTO delivery

pipe

35 to 39 N·m

3.5 to 4.0 kgf·m

26 to 28 lbf·ft

Front loader pipe retaining

nut

90.0 to 108 N·m

9.18 to 11.0 kgf·m

66.4 to 79.6 lbf·ft

(1) Front Loader Pipe

(2) Main Delivery Pipe 1

(3) PTO Delivery Pipe

(4) Suction Pipe

Tightening torque

Engine and clutch housing

mounting screw

78 to 90 N·m

7.9 to 9.2 kgf·m

58 to 66 lbf·ft

Engine and clutch housing

mounting nut

103 to 117 N·m

10.5 to 12.0 kgf·m

76.0 to 86.7 lbf·ft
