TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S61

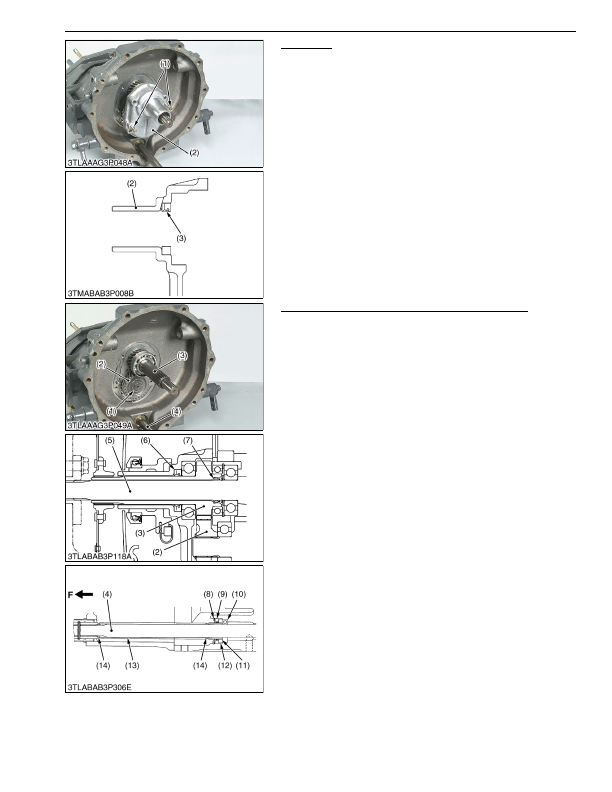

Shaft Case

1. Remove the shaft case mounting screws.

2. Screw down the two M6 jack bolts (1) into the shaft case (2) and

pull it out.

3. Remove the shaft case (2).

(When reassembling)

• Apply liquid gasket (Three Bond 1208C or equivalent) to joint

face of the shaft case and clutch housing.

(When replacing oil seal in shaft case)

• Install the oil seal (3) as shown in the figure, noting its direction.

• Apply grease to the oil seal (3).

9Y1210824TRS0015US0

23T Gear Shaft, 27T Gear and Front Axle Drive Shaft

1. Remove the 23T gear shaft (3).

2. Remove the external snap ring (1) and 27T gear (2).

3. Pull out the front axle drive shaft (4) to the rear side (4WD only).

(When reassembling)

• Install  the  oil  seal  (7)  on  the  18T  gear  shaft  (5),  noting  the

direction of the oil seal (7) as shown in the figure.

• Direct the boss side of the gear (2) to the bearing side.

• Apply small amount of the grease to the oil seal (6), (7).

• Install  the  front  axle  drive  shaft  (4)  from  front  side  after

assembling the clutch housing case and mid case. Then install

the bearing (10), sleeve (11), collar (12), oil seal (9), internal

snap ring (8), O-ring (14) and spacer (13) in order.

9Y1210824TRS0016US0

(1) M6 Jack Bolt

(2) Shaft Case

(3) Oil Seal

(1) External Snap Ring

(2) 27T Gear (L3560, L4060)

(3) 23T Gear Shaft (L3560, L4060)

(4) Front Axle Drive Shaft

(5) 18T Gear Shaft

(6) Oil Seal

(7) Oil Seal

(8) Internal Snap Ring

(9) Oil Seal

(10) Bearing

(11) Sleeve

(12) Collar

(13) Spacer

(14) O-ring

F:

Front Side

KiSC issued 03, 2016 A
