TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S63

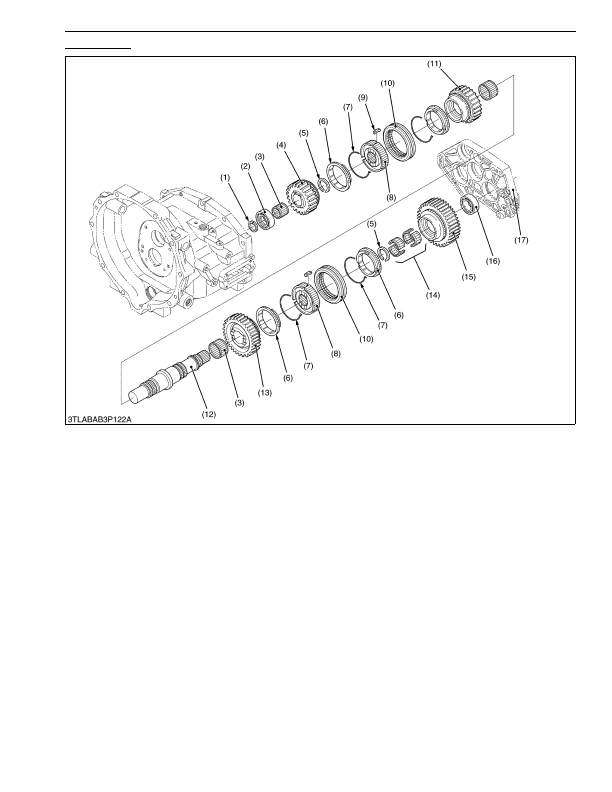

Counter Shaft

1. Remove the internal snap ring (1) and remove both side of the bearings (2), (16).

2. Remove the gears on the counter shaft (12) and external snap rings (5).

(When reassembling)

• Reinstall the synchronizer keys (9) in the key grooves of the synchronizer rings (6) firmly.

9Y1210824TRS0019US0

(1) Internal Snap Ring

(2) Bearing

(3) Needle Bearing

(4) 24T Gear (4th)

(5) External Snap Ring

(6) Synchronizer Ring

(7) Synchronizer Spring

(8) Hub

(9) Synchronizer Key

(10) Shifter

(11) 29T Gear (3rd)

(12) Counter Shaft

(13) 34T Gear (2nd)

(14) Needle Bearing

(15) 37T Gear (1st)

(16) Bearing

(17) Bearing Holder

KiSC issued 03, 2016 A
