TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S68

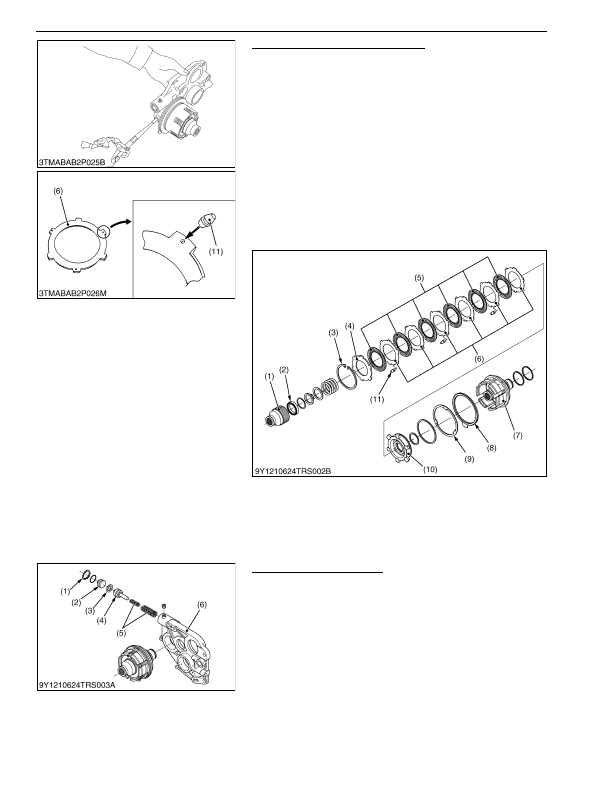

Clutch Discs and Hub of PTO Clutch

1. Remove the internal snap ring (3).

2. Remove the back plate (4), clutch discs (5), clutch plates (6),

hub (1) and bearing (2).

(When reassembling)

• Install the clutch plates (5) and clutch plates (6) mutually.

• Do not confuse the two types of clutch plates (6). The clutch

plates  with  the  plug  rubbers  (11)  are  clutch  plates  (7)  and

without plug rubbers are clutch plates (6).

• Do  not  confuse  the  back  plate  (4)  and  clutch  plates  (6).  The

back plate (4) is thicker than the clutch plates (6).

• Assemble the plug rubbers (11) portion 08 the clutch plates (6)

are same positions while assemble them.)

• Apply the enough transmission fluid to the clutch discs (5).

• Make  sure  the  moving  of  the  piston  (10)  smoothly  when

pressure air at 0.29 to 0.39 MPa (3 to 4 kgf/cm

2

, 42 to 57 psi) is

sent to clutch pack.

9Y1210824TRS0027US0

Accumulator of PTO Clutch

1. Remove the internal snap ring (1).

2. Remove the cover (2).

3. Draw out the piston (4) and springs (5).

(When reassembling)

• Apply small amount of the grease to the O-ring and the piston

seal (3).

9Y1210824TRS0028US0

(1) Hub

(2) Bearing

(3) Internal Snap Ring

(4) Back Plate

(5) Clutch Disc

(6) Clutch Plate

(7) Clutch Case

(8) Brake Disc

(9) Brake Plate

(10) Piston

(11) Plug Rubber

(1) Internal Snap Ring

(2) Cover

(3) Piston Seat

(4) Piston

(5) Spring

(6) Bearing Holder

KiSC issued 03, 2016 A
