TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S69

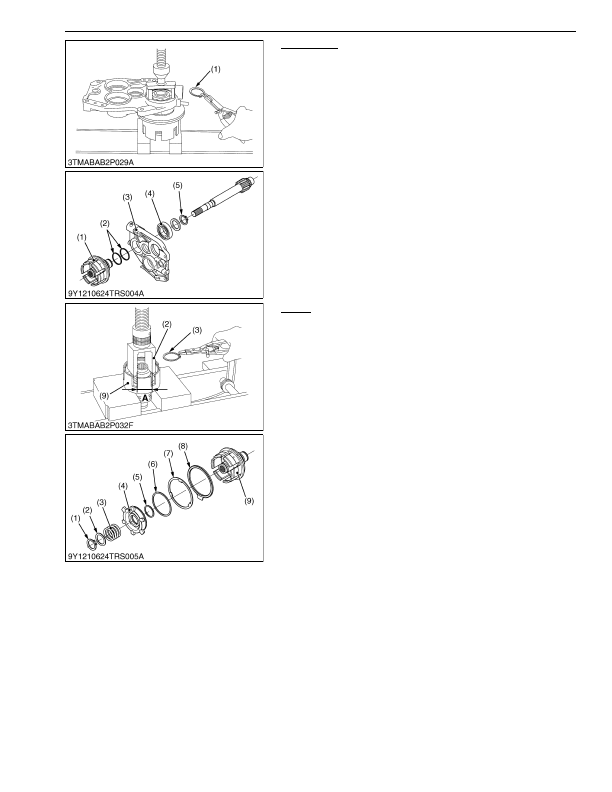

Clutch Case

1. Remove the external snap ring (5).

2. Remove the clutch case (1).

(When reassembling)

• Apply small amount of the grease to the seal rings (2).

9Y1210824TRS0029US0

Piston

1. Press the washer (2) lightly by the hand press, using the hand

made jig. (Refer to the figure left.)

2. Remove the external snap ring (1), washer (2) and spring (3).

3. Draw out the piston (4).

4. Draw out the ring (5), outer ring (6), brake plate (7) and brake

disc (8).

(When reassembling)

• Apply enough transmission fluid to rings (5), (6).

9Y1210824TRS0030US0

(1) Clutch Case

(2) Seal Ring

(3) Bearing Holder

(4) Bearing

(5) External Snap Ring

(1) External Snap Ring

(2) Washer

(3) Spring

(4) Piston

(5) Ring

(6) Outer Ring

(7) Brake Plate

(8) Brake Disc

(9) Clutch Case

A: 41 mm (1.6 in.)

KiSC issued 03, 2016 A
