TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S70

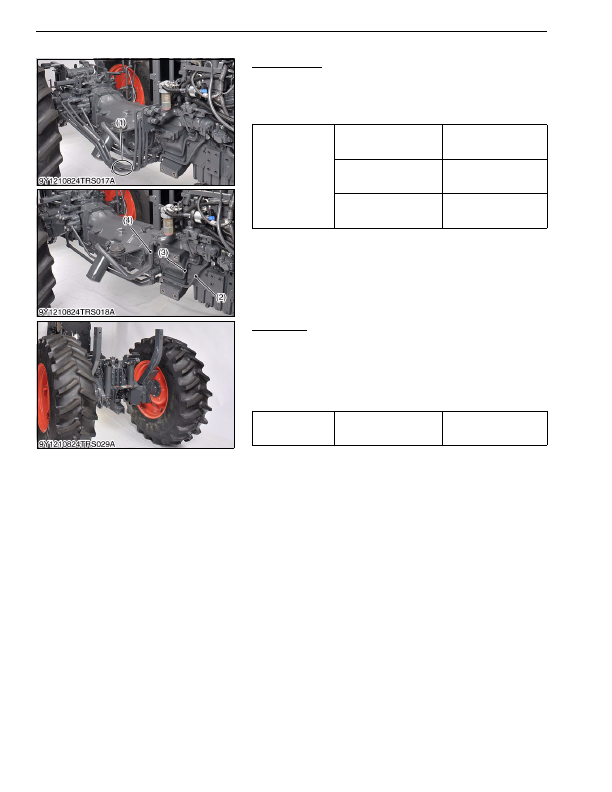

(3) Transmission Case

Hydraulic Pipe

1. Remove the front loader pipes (1).

2. Disconnect the suction pipe (4).

3. Remove the main delivery pipe (2) and PTO delivery pipe (3).

(When reassembling)

9Y1210824TRS0009US0

Rear Wheel

1. Place  disassembling  stand  under  the  transmission  case  and

support it with a jack.

2. Remove the rear wheels.

3. After removing the rear wheels, support it at both sides of rear

axle by stands.

(When reassembling)

9Y1210824TRS0031US0

Tightening torque

Joint bolt for main delivery

pipe

118 to 137 N·m

12.0 to 14.0 kgf·m

86.8 to 101 lbf·ft

Joint bolt for PTO delivery

pipe

35 to 39 N·m

3.5 to 4.0 kgf·m

26 to 28 lbf·ft

Front loader pipe retaining

nut

90.0 to 108 N·m

9.18 to 11.0 kgf·m

66.4 to 79.6 lbf·ft

(1) Front Loader Pipe

(2) Main Delivery Pipe 1

(3) PTO Delivery Pipe

(4) Suction Pipe

Tightening torque

Rear wheel mounting

screw and nut

220 N·m

22 kgf·m

160 lbf·ft

KiSC issued 03, 2016 A
