TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S80

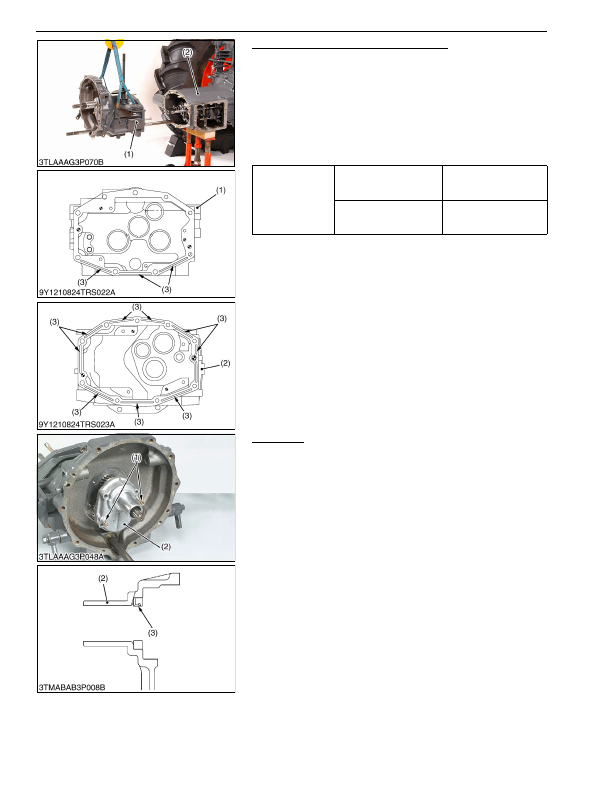

Separating Clutch Housing and Mid Case

1. Remove the clutch housing and mid case mounting screws and

nuts.

2. Separate the clutch housing (1) and mid case (2).

(When reassembling)

• Apply liquid gasket (Three Bond 1208C or equivalent) to joint

face of the clutch housing and mid case.

• Make sure to apply liquid gasket to elongated grooves (3) on the

mid  case  face  and  to  those  on  the  lower  side  of  the  clutch

housing face.

9Y1210824TRS0055US0

Shaft Case

1. Remove the shaft case mounting screws.

2. Screw down the two M6 jack bolts (1) into the shaft case (2) and

pull it out.

3. Remove the shaft case (2).

(When reassembling)

• Apply liquid gasket (Three Bond 1208C or equivalent) to joint

face of the shaft case and clutch housing.

(When replacing oil seal in shaft case)

• Install the oil seal (3) as shown in the figure, noting its direction.

• Apply grease to the oil seal (3).

9Y1210824TRS0015US0

Tightening torque

Clutch housing and mid

case mounting nut

103 to 117 N·m

10.5 to 12.0 kgf·m

76.0 to 86.7 lbf·ft

Clutch housing and mid

case mounting screw

78 to 90 N·m

7.9 to 9.2 kgf·m

58 to 66 lbf·ft

(1) Clutch Housing

(2) Mid Case

(3) Elongated Groove

(1) M6 Jack Bolt

(2) Shaft Case

(3) Oil Seal

KiSC issued 03, 2016 A
