TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S87

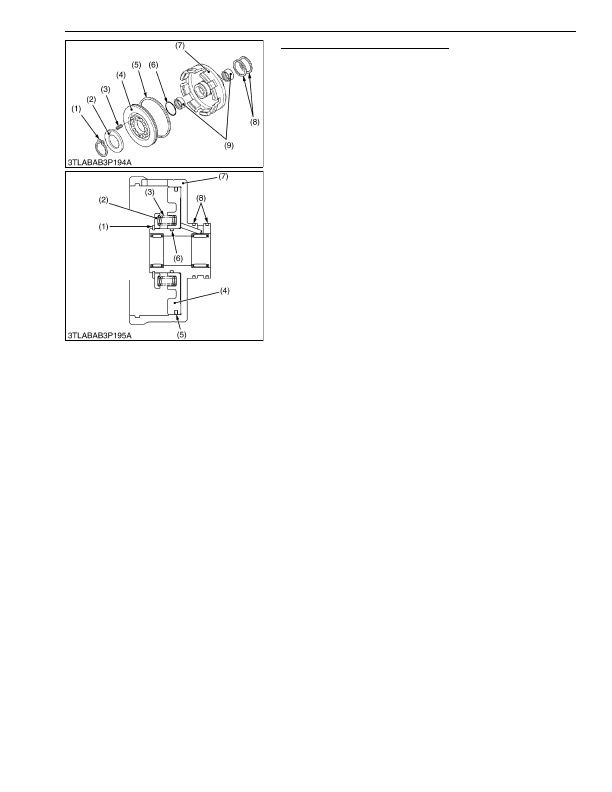

Clutch Case and GST Clutch Piston

1. Remove the external snap ring (1) while pushing the spring

retainer (2) by hand press.

2. Remove the spring retainer (2), springs (3) and piston (4).

(When reassembling)

• Apply small amount of the grease to the seal rings (8) when

assemble the clutch case (7).

• Apply enough transmission fluid to the O-ring (6) and D-ring (5).

9Y1210824TRS0067US0

(1) External Snap Ring

(2) Spring Retainer

(3) Spring

(4) Piston

(5) D-ring

(6) O-ring

(7) Clutch Case

(8) Seal Ring

(9) Needle Bearing

KiSC issued 03, 2016 A

1 ... 402403404405406407408409410

Detailed Information for Kubota L3560 Owners Manual

Lists of information found in Kubota L3560 Owners Manual - Page 406

1. Remove the external snap ring (1) while pushing the spring retainer (2) by hand press.
2. Remove the spring retainer (2), springs (3) and piston (4).

Apply small amount of the grease to the seal rings (8) when assemble the clutch case (7).
Apply enough transmission fluid to the O-ring (6) and D-ring (5).
