TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S97

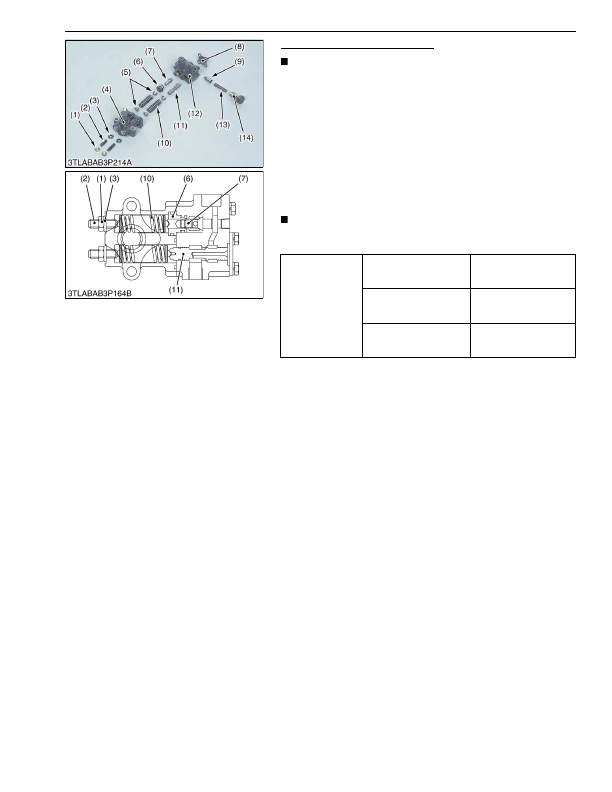

Disassembling Regulating Valve

NOTE

• The regulating valve has been precisely machined and

assembled. It is advisable not to disassemble it as long as
there is no necessary.

1. Remove the plate (8), reducing spool (11), spring retainer (5)

and spring (10).

2. Separate the regulating valve case (12) and support (4).

3. Remove the bush (6) and poppet (7).

4. Remove the joint bolt (14).

5. Remove the spring (13) and the poppet (9).

6. Remove the spring retainer (5) and spring (10).

(When reassembling)

• Be careful not to damage the O-rings.

IMPORTANT

• After reassembling, the adjustment of regulating pressure

should be performed.

9Y1210824TRS0081US0

Tightening torque

Joint bolt (14)

35 to 39 N·m

3.5 to 4.0 kgf·m

26 to 28 lbf·ft

Plate (8)

9.8 N·m

1.0 kgf·m

7.2 lbf·ft

Regulating valve case and

support mounting screws

9.8 N·m

1.0 kgf·m

7.2 lbf·ft

(1) Nut

(2) Adjustor

(3) Washer with Rubber

(4) Support

(5) Spring Retainer

(6) Bush

(7) Poppet

(8) Plate

(9) Poppet

(10) Spring

(11) Reducing Spool

(12) Regulating Valve Case

(13) Spring

(14) Joint Bolt
