TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S104

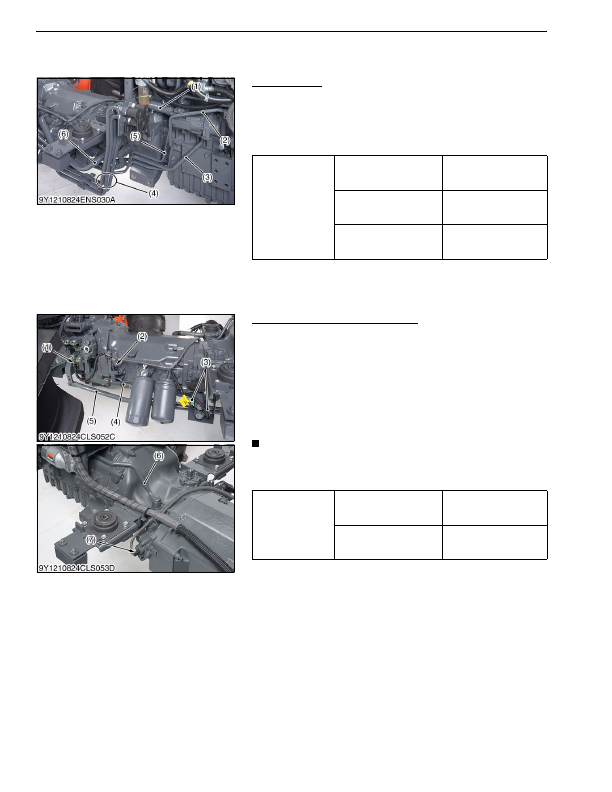

[3] HYDROSTATIC TRANSMISSION

(1) Clutch Housing

Hydraulic Pipe

1. Remove the front loader pipes (4).

2. Disconnect the suction hose (1) and suction pipe (6).

3. Remove the main delivery pipe (3), power steering delivery pipe

(2) and delivery pipe (5).

(When reassembling)

9Y1210824ENS0023US0

Hydraulic Pipe and Wiring Harness

1. Disconnect the travling speed sensor connector (1).

2. Disconnect the PTO clutch valve connector (2).

3. Disconnect the proportional valve connectors (3).

4. Remove the brake rod R.H. (5).

5. Remove the PTO delivery pipe (4).

6. Disconnect the solenoid valve connector (7).

7. Set aside the main wiring harness to the front.

8. Remove the HST return pipe (6).

(When reassembling)

IMPORTANT

• In installing the connector of the proportional valve, pay

attention to the color of the connector to ensure correct
installation.

9Y1210824CLS0038US0

Tightening torque

Front loader pipe retaining

nut

90.0 to 108 N·m

9.18 to 11.0 kgf·m

66.4 to 79.6 lbf·ft

Joint bolt for main delivery

pipe

40 to 49 N·m

4.0 to 4.9 kgf·m

29 to 36 lbf·ft

Joint bolt for delivery pipe

40 to 49 N·m

4.0 to 4.9 kgf·m

29 to 36 lbf·ft

(1) Suction Hose

(2) Power Steering Delivery Pipe

(3) Main Delivery Pipe

(4) Front Loader Pipe

(5) Delivery Pipe

(6) Suction Pipe

Tightening torque

Joint bolt for PTO delivery

pipe

35 to 39 N·m

3.5 to 4.0 kgf·m

26 to 28 lbf·ft

Joint bolt for HST return

pipe

88 to 98 N·m

9.0 to 9.9 kgf·m

65 to 72 lbf·ft

(1) Traveling Speed Sensor Connector

(2) PTO Clutch Valve Connector

(3) Proportional Valve Connector

(4) PTO Delivery Pipe

(5) Brake Rod R.H.

(6) HST Return Pipe

(7) Solenoid Valve Connector

KiSC issued 03, 2016 A
