TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S113

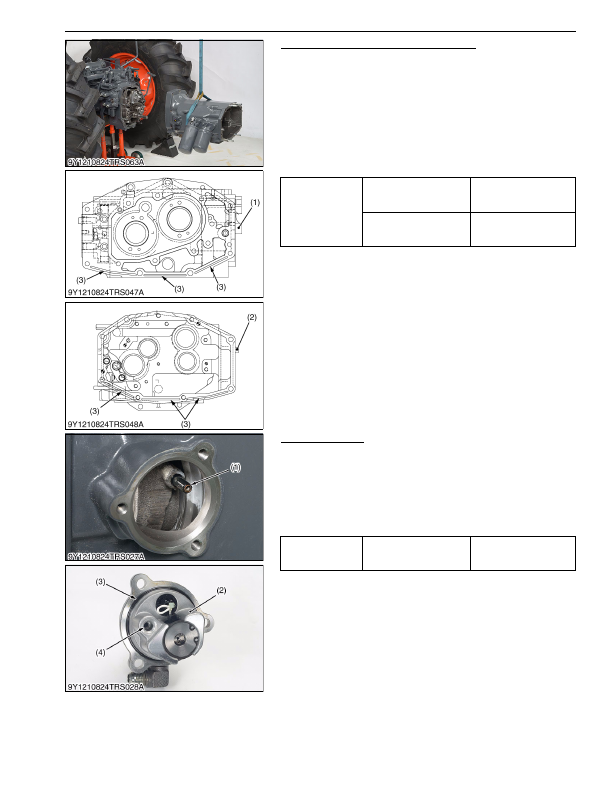

Separating Clutch Housing and Mid Case

1. Remove the clutch housing and mid case mounting screws and

nuts.

2. Separate the clutch housing (1) and mid case (2).

(When reassembling)

• Gasket should be replaced with new one.

• Apply liquid gasket (Three Bond 1208C or equivalent) to joint

face of the clutch housing (1) and mid case (2).

• Make sure to apply liquid gasket to elongated grooves (3) on the

mid  case  face  and  to  those  on  the  lower  side  of  the  clutch

housing face.

9Y1210824TRS0114US0

PTO Clutch Valve

1. Remove the PTO clutch valve (2) as a unit.

2. Pull out the pipe (1).

(When reassembling)

• Apply small amount of grease for the O-ring (3).

• Install the pipe (1) to the hole (4) of the PTO clutch valve (2)

firmly.

• Replace the pipe (1) with a new one.

9Y1210824TRS0023US0

Tightening torque

Clutch housing and mid

case mounting screw

78 to 90 N·m

7.9 to 9.2 kgf·m

58 to 66 lbf·ft

Clutch housing and mid

case mounting nut

103 to 117 N·m

10.5 to 12.0 kgf·m

76.0 to 86.7 lbf·ft

(1) Clutch Housing

(2) Mid Case

(3) Elongated Groove

Tightening torque

PTO clutch valve mounting

screw

23.5 to 27.4 N·m

2.40 to 27.4 kgf·m

17.4 to 20.2 lbf·ft

(1) Pipe

(2) PTO Clutch Valve

(3) O-ring

(4) Hole
