TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S132

[3]  HYDROSTATIC TRANSMISSION (HST)

(1)  Bearing, Gear and Shaft

Refer to 3-S123.

9Y1210824TRS0145US0

(2) PTO Clutch

Refer to 3-S125.

9Y1210824TRS0147US0

(3) Differential Gears

Refer to 3-S126.

9Y1210824TRS0148US0

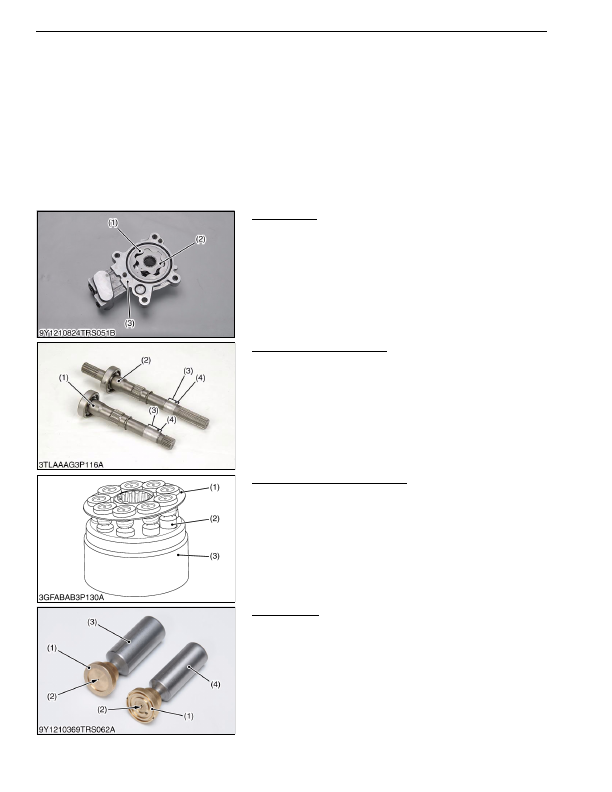

(4) HST

Charge Pump

1. Check  the  charge  pump  housing  and  the  rotor  (1),  (2)  for

scratches and wear.

2. If scratch or worn, replace the charge pump complete assembly.

9Y1210824TRS0157US0

Pump Shaft and Motor Shaft

1. Check the seal surface (4) and the bearing surface (3).

2. If the shaft is rough or groove, replace it.

9Y1210824TRS0158US0

Cylinder Block Bore and Pistons

1. Lift the pistons gently with the retainer plate (1).

2. Check the pistons for their free movement in the cylinder block

bores.

3. If the piston or the cylinder block bore is scored, replace cylinder

block assembly.

9Y1210824TRS0159US0

Piston Slipper

1. Check the slipper (1) for flatness.

2. If rounded, replace the cylinder block assembly.

3. Check the lubricant hole (2) for clogging.

9Y1210824TRS0160US0

(1) Inner Rotor

(2) Outer Rotor

(3) Pump Cover

(1) Motor Shaft

(2) Pump Shaft

(3) Bearing Surface

(4) Seal Surface

(1) Retainer Plate

(2) Piston

(3) Cylinder Block

(1) Piston Slipper

(2) Lubricant Hole

(3) Motor Piston

(4) Pump Piston

KiSC issued 03, 2016 A
