Charge Relief Valve; Servo Piston; Check and High Pressure Relief Valve- Page 453

Kubota L3560 Owners Manual

2014 Dodge Charger SRT Owner Manual

Table of Contents

L3560,L4060,L4760,L5060,L5460,L6060
9 ELECTRICAL SYSTEM
background image

TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S134

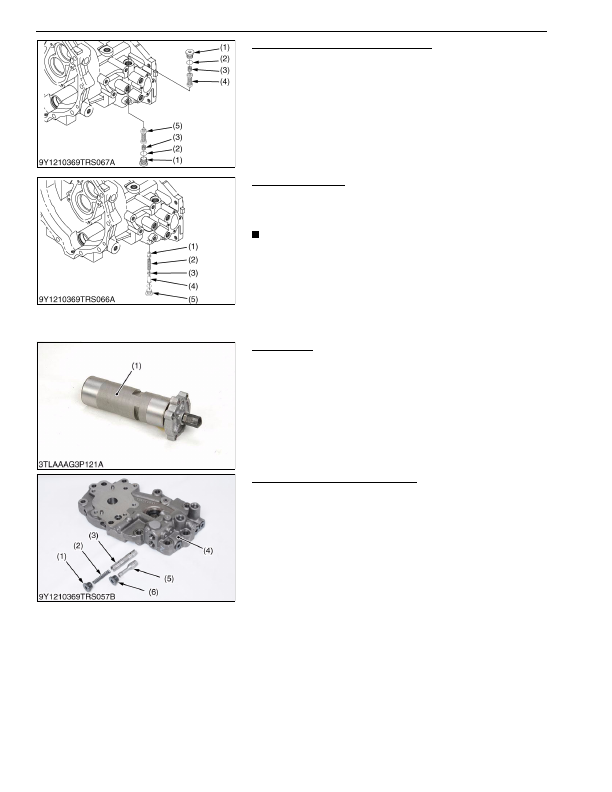

Check and High Pressure Relief Valve

1. Check the valve plug (1) and valve for scratches and damage.

2. Check the valve seat in the port block for damage.

3. Check the spring (3) for breakage and wear.

4. If anything unusual, replace the check and high pressure relief

valve assembly.

9Y1210824TRS0165US0

Charge Relief Valve

1. Check the spring guide (3), spring (2) and valve poppet (1) for

scratches, breakage and damage.

2. If anything unusual. replace.

NOTE

• When re-installing the charge relief valve, never change the

number of shims.

• If replace with a new one, be sure to check and adjust the

setting pressure. (See page 3-S32.)

9Y1210824TRS0166US0

Servo Piston

1. Check the surface of servo piston for scratches and excessive

wear.

2. If worn or scored, replace the servo piston assembly.

9Y1210824TRS0167US0

Hi-Lo Spool and Pressure Selector

1. Check the surface of Hi-Lo spool (3) and pressure selector (5)

for scratches and damage.

2. If anything unusual, replace the Hi-Lo spool (3) and pressure

selector (5).

9Y1210824TRS0168US0

(1) Plug

(2) O-ring

(3) Spring

(4) Check and High Pressure Relief

Valve Assembly (Forward)

(5) Check and High Pressure Relief

Valve Assembly (Reverse)

(1) Valve Poppet

(2) Spring

(3) Spring Guide

(4) Shim

(5) Hex. Socket Head Plug

(1) Servo Piston Assembly

(1) Hex. Socket Head Screw

(2) Spring

(3) Hi-Lo Spool

(4) Port Block

(5) Pressure Selector

(6) Hex. Socket Head Screw
