REAR AXLE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

4-M1

1. STRUCTURE

[L3560, L4060 and L4760]

The final gear (9) are final reduction mechanism which further reduces the speed of rotation. The direction of

power transmitted is changed by the differential gear.

The rear axles (2) are the final transmission mechanism which transmit the power from the transmission to the

rear wheels. The rotation speed is reduced by the final gears (9).

The rear axles are the semi-floating type with the ball bearing (1) between the rear axle (2) and rear axle case

(3), which support the rear wheel load besides transmitting power to the rear wheel. The rear axles also support the

weight of the tractor.

9Y1210824RAM0001US0

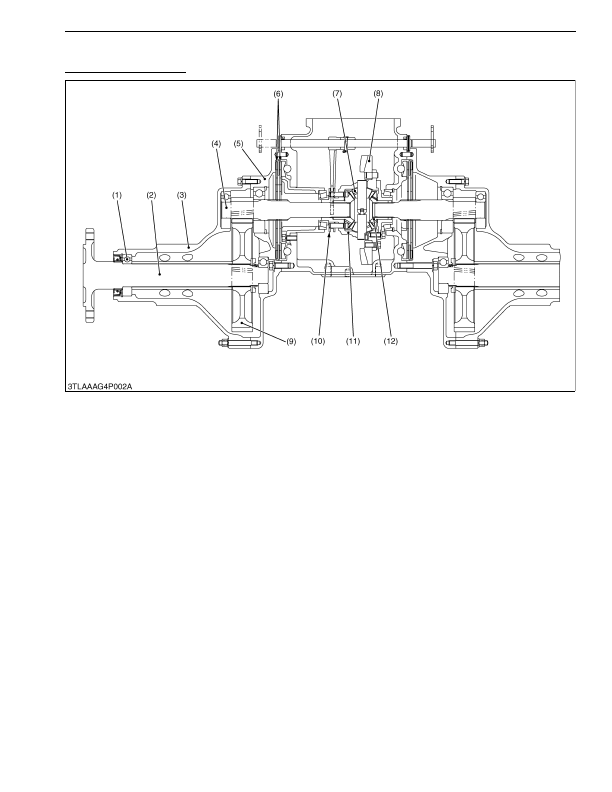

(1) Ball Bearing

(2) Rear Axle

(3) Rear Axle Case

(4) Differential Gear Shaft

(5) Brake Case

(6) Brake Disc

(7) Differential Pinion

(8) Ring Gear

(9) Final Gear

(10) Differential Lock Shifter

(11) Differential Case

(12) Differential Side Gear
