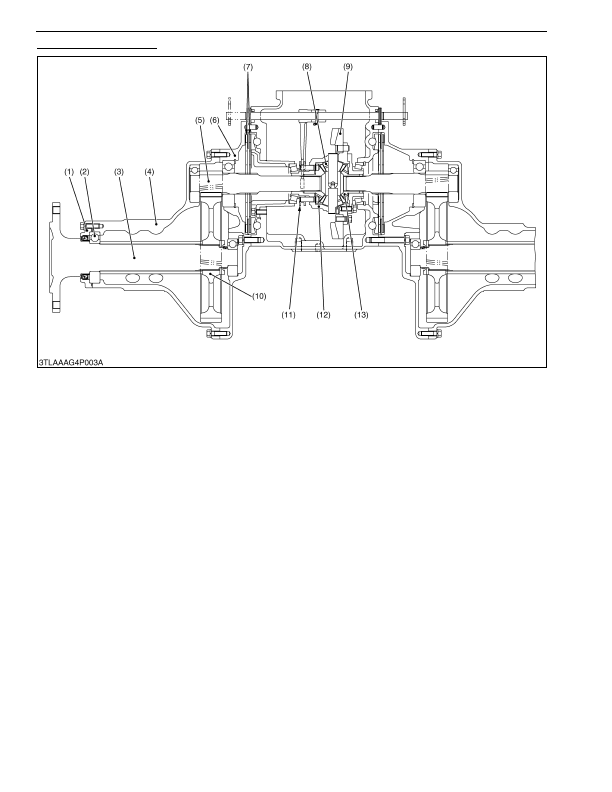

REAR AXLE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

4-M2

[L5060, L5460 and L6060]

9Y1210824RAM0002US0

(1) Rear Axle Cover

(2) Ball Bearing

(3) Rear Axle

(4) Rear Axle Case

(5) Differential Gear Shaft

(6) Brake Case

(7) Brake Disc

(8) Differential Pinion

(9) Ring Gear

(10) Final Gear

(11) Differential Lock Shifter

(12) Differential Case

(13) Differential Side Gear

KiSC issued 03, 2016 A
