GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-17

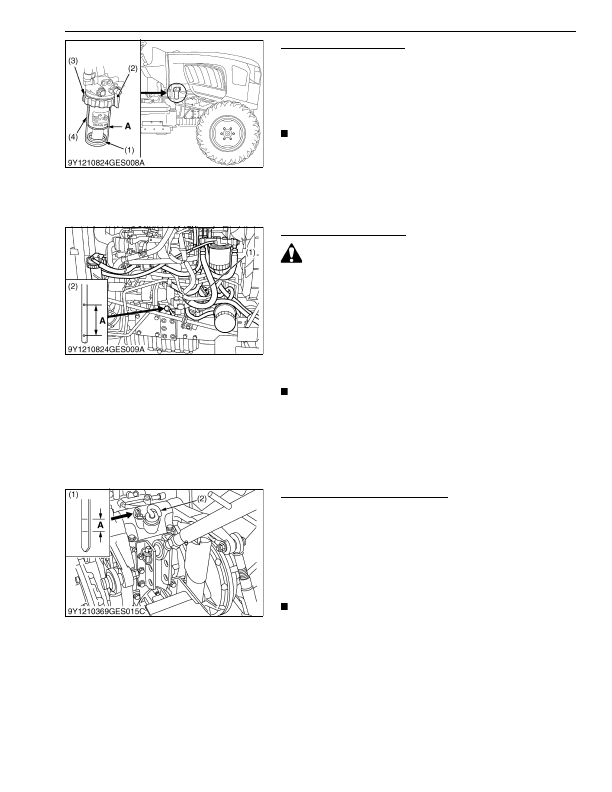

Checking Water Separator

1. As  water  is  collected  in  the  water  separator,  the  red  float  is

raised.

2. When the red float has reached the white line, close the fuel

valve, loosen the retainer ring, take out the cup, and clean the

cup. Be careful not to break the element.

3. Place the cup back into position. Bleed the fuel system.

IMPORTANT

• If water is drawn through to the fuel pump, extensive

damage will occur.

9Y1210824GEG0012US0

Checking Engine Oil Level

 CAUTION

• Be sure to stop the engine before checking the oil level.

1. Park the machine on a flat surface.

2. Check engine oil before starting the engine or 5 minutes or more

after the engine has stopped.

3. To  check  the  oil  level,  draw  out  the  dipstick,  wipe  it  clean,

replace it, and draw it out again. Check to see that the oil level

lies between the two notches.

If the level is too low, add new oil to the prescribed level at the

oil inlet. (Refer to "4. LUBRICANTS, FUEL AND COOLANT" on

page G-9.)

IMPORTANT

• When using an oil of different maker or viscosity from the

previous one, remove all of the old oil.
Never mix two different types of oil.

• If oil level is low, do not run engine.

9Y1210824GEG0013US0

Checking Transmission Fluid Level

1. Park the machine on a flat surface, lower the implement and

shut off engine.

2. To  check  the  oil  level,  draw  out  the  dipstick,  wipe  it  clean,

replace it, and draw it out again. Check to see that the oil level

lies between the two notches.

If the level is too low, add new oil to the prescribed level at the

oil inlet. (Refer to"4. LUBRICANTS, FUEL AND COOLANT" on

page G-9.)

IMPORTANT

• If oil level is low, do not run engine.

9Y1210824GEG0014US0

(1) Red Float

(2) Fuel Valve

(3) Retainer Ring

(4) Cup

A : WHITE LINE

(1) Oil Inlet

(2) Dipstick

A: Oil level is acceptable within this

range.

(1) Gauge

(2) Oil Inlet

A: Oil level is acceptable within this

range.
