REAR AXLE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

4-S6

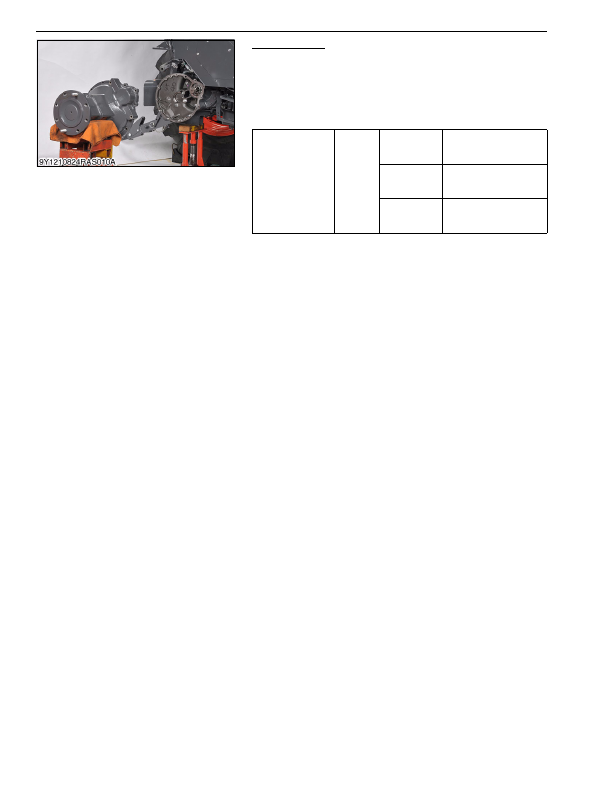

Rear Axle Case

1. Place the disassembling stand under the rear axle case.

2. Remove the rear axle mounting screws and nuts.

3. Separate the rear axle case from brake case.

(When reassembling)

• Apply liquid gasket (Three Bond 1208C or equivalent) to joint

face of the rear axle case and brake case.

9Y1210824RAS0007US0

Tightening torque

Rear axle

case

mounting

screw

and nut

M10 screw

48 to 55 N·m

4.9 to 5.7 kgf·m

36 to 41 lbf·ft

M10 nut (9T)

(Except

L3560)

61 to 70 N·m

6.2 to 7.2 kgf·m

45 to 52 lbf·ft

M12 screw

(Except

L3560)

78 to 90 N·m

7.9 to 9.2 kgf·m

58 to 66 lbf·ft

KiSC issued 03, 2016 A
