BRAKES

L3560, L4060, L4760, L5060, L5460, L6060, WSM

5-M1

1. STRUCTURE

This is used hanging type brake pedals (4) to have wider space of the platform.

Independent mechanical wet disc brakes are used for the right and left travelling brakes. They are operated by

the brake pedals (4) through the mechanical linkages.

The parking brake is a mechanical type which is designed to actuate the travelling brakes. Pulling the parking

brake lever (3) results in the same state as that obtained when the brake pedals (4) are pressed.

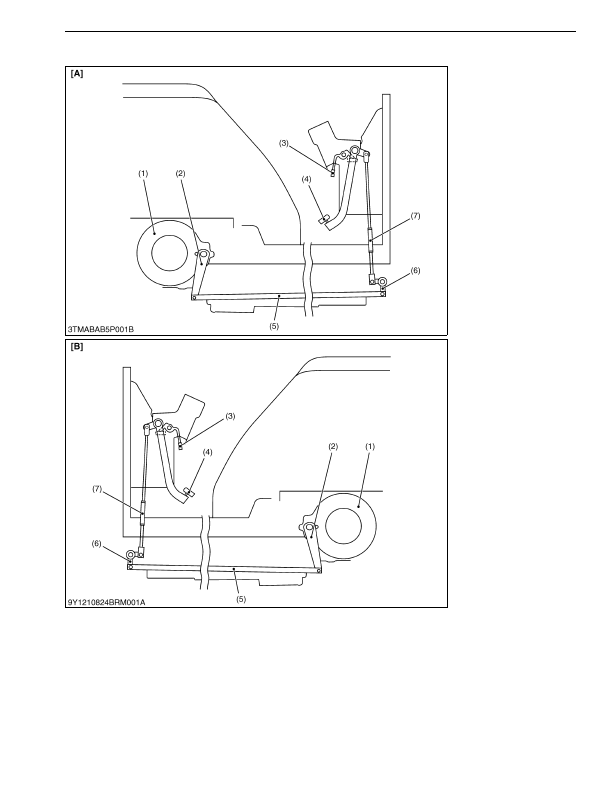

9Y1210824BRM0001US0

(1) Brake Case

(2) Brake Cam Lever

(3) Parking Brake Lever

(4) Brake Pedal

(5) Brake Rod

(6) Brake Lever Link

(7) Turnbuckle

[A] Manual Transmission and

GST

[B] HST
