Checking Coolant Level

 CAUTION

• Do not remove radiator cap while coolant is hot. When cool,

slowly rotate cap to the first stop and allow sufficient time
for excess pressure to escape before removing the cap
completely.

1. Check to see that the coolant level is between the

"FULL"

 and

"LOW"

 marks of recovery tank.

2. When  the  coolant  level  drops  due  to  evaporation,  add  water

only up to the full level.

In case of leakage, add anti-freeze and water in the specified

mixing  ratio  up  to  the  full  level.  (Refer  to  "4.  LUBRICANTS,

FUEL AND COOLANT" on page G-9.)

IMPORTANT

• If the radiator cap has to be removed, follow the caution

above and securely retighten the cap.

• Use clean, fresh water and anti-freeze to fill the recovery

tank.

9Y1210824GEG0015US0

Checking Dust Indicator (L3560)

There is a dust indicator on the air cleaner body. If the red signal

on the dust indicator is visible, clean the element immediately (see

page  G-28).  Reset  the  red  signal  by  pushing  a

"RESET"

  button

after cleaning.

9Y1210824GEG0016US0

Checking Dust Indicator (L4060, L4760, L5060, L5460, L6060)

There is a dust indicator on the air cleaner body. If the yellow

signal on the dust indicator has reached the red zone, clean the

element immediately (see page G-28). Reset the yellow signal by

pushing a

"RESET"

 button after cleaning.

9Y1210824GEG0017US0

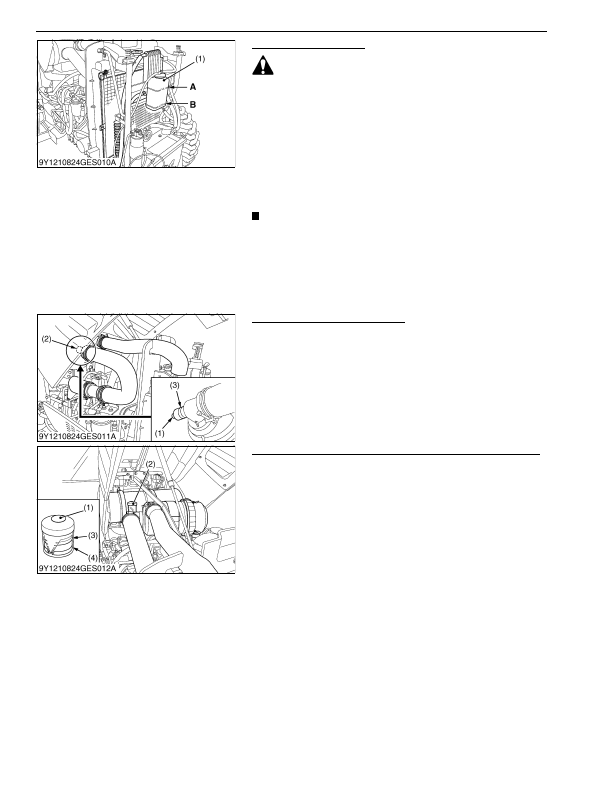

(1) Recovery Tank

A: FULL
B: LOW

(1)

"RESET"

 Button

(2) Dust Indicator

(3) Red Signal

(1)

"RESET"

 Button

(2) Dust Indicator

(3) Yellow Signal

(4) Red Zone
