BRAKES

L3560, L4060, L4760, L5060, L5460, L6060, WSM

5-S4

4. CHECKING AND ADJUSTING

[1] BRAKE PEDAL

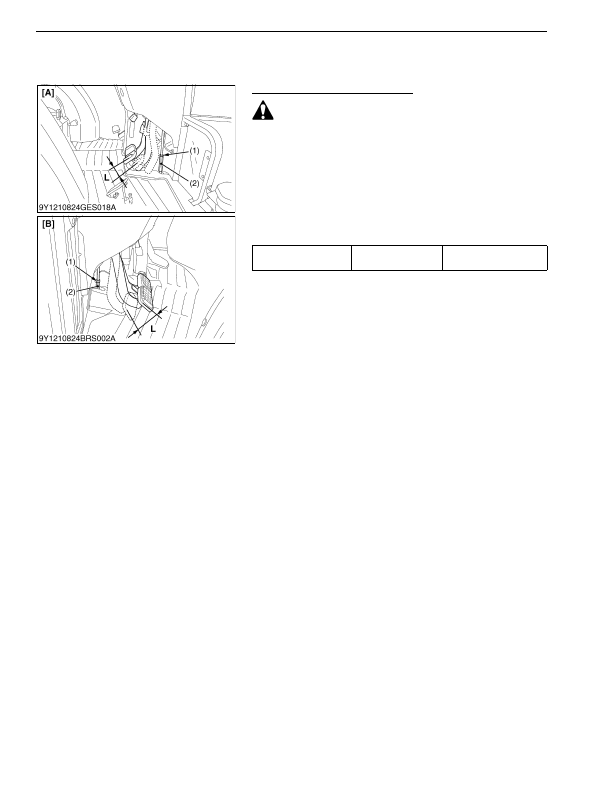

Checking Brake Pedal Free Travel

CAUTION

• Stop the engine and chock the wheels before checking

brake pedal.

1. Release the parking brake.

2. Slightly depress the brake pedal and measure free travel

"L"

at

top of pedal stroke.

3. If the measurement is not within the factory specifications,

loosen the lock nut (1) and turn the turnbuckle (2) to adjust the

rod length within acceptable limits.

4. Retighten the lock nut (1) securely.

Keep the free travel in the right and left brake pedals equal.

9Y1210824GEG0022US0

Brake pedal free travel

"L"

Factory specification

15 to 20 mm

0.59 to 0.78 in.

(1) Lock Nut

(2) Turnbuckle

[A] GST / Manual Transmission
[B] HST
L:

Free Travel

KiSC issued 03, 2016 A
