BRAKES

L3560, L4060, L4760, L5060, L5460, L6060, WSM

5-S5

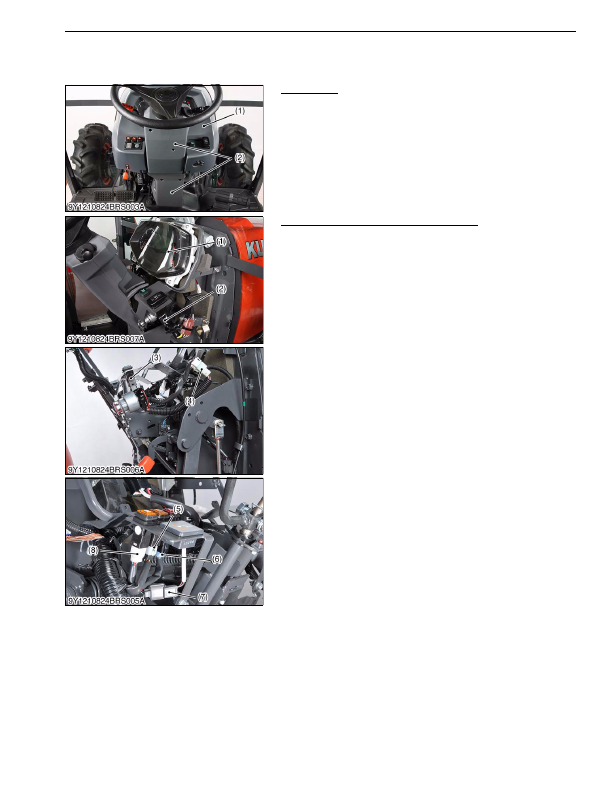

5. DISASSEMBLING AND ASSEMBLING

[1] BRAKE PEDAL

Panel Cover

1. Remove the panel cover (1).

2. Remove the steering post covers (2).

9Y1210824BRS0005US0

Meter Panel (Electronic Instrument Panel)

1. Remove the meter panel (1).

2. Disconnect the cruise switch connector (2). [HST only]

3. Disconnect the main switch connector (4) and side working light

connector (3).

4. Disconnect the DPF switch connector (5), DPF auto switch

connector (8), hazard switch connector (6) and display mode

switch connector (7).

9Y1210824BRS0006US0

(1) Panel Cover

(2) Steering Post Cover

(1) Meter Panel

(2) Cruise Switch Connector

(3) Side Working Light Connector

(4) Main Switch Connector

(5) DPF Switch Connector

(6) Hazard Switch Connector

(7) Display Mode Switch Connector

(8) DPF Auto Switch Connector

KiSC issued 03, 2016 A
