BRAKES

L3560, L4060, L4760, L5060, L5460, L6060, WSM

5-S6

Brake Pedal and Brake Rod (Manual Transmission / GST)

1. Remove the brake rods (11), (13).

2. Remove the brake pedal rods (10), (12).

3. Disconnect the clutch pedal rod.

4. Remove the external snap ring (2).

5. Tap out the spring pin (6) and pull out the brake pedal shaft (9) with clutch pedal (8).

6. Remove the brake pedals (4), (7) and springs (5).

7. Remove the parking brake lever (1).

9Y1210824BRS0007US0

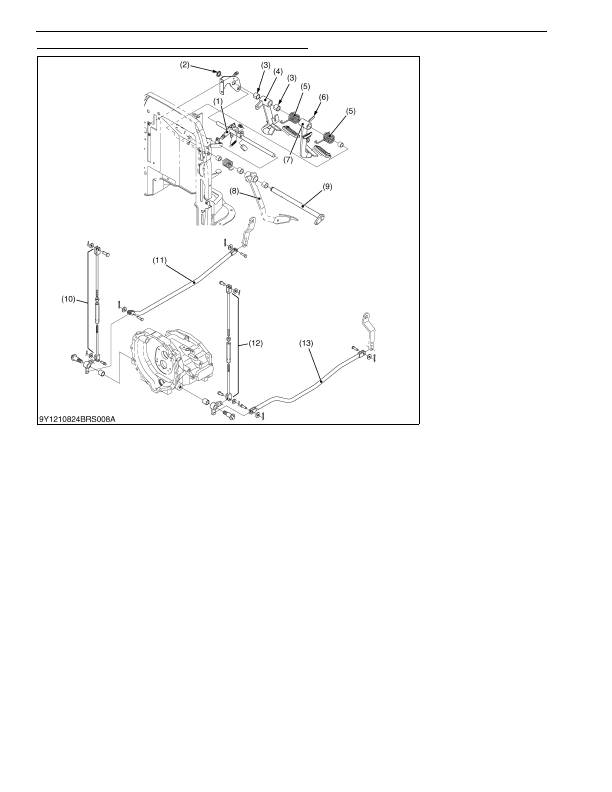

(1) Parking Brake Lever

(2) External Snap Ring

(3) Bush

(4) Brake Pedal RH

(5) Spring

(6) Spring Pin

(7) Brake Pedal LH

(8) Clutch Pedal

(9) Brake Pedal Shaft

(10) Brake Pedal Rod RH

(11) Brake Rod RH

(12) Brake Pedal Rod LH

(13) Brake Rod LH

KiSC issued 03, 2016 A
