BRAKES

L3560, L4060, L4760, L5060, L5460, L6060, WSM

5-S7

Brake Pedal and Brake Rod (HST)

1. Remove the brake rods (10), (12).

2. Remove the brake pedal rods (9), (11).

3. Disconnect the clutch pedal rod.

4. Remove the external snap ring (7).

5. Tap out the spring pin (3) and pull out the brake pedal shaft (11).

6. Remove the brake pedals (2), (6) and springs (4).

7. Remove the parking brake lever (8).

9Y1210824BRS0008US0

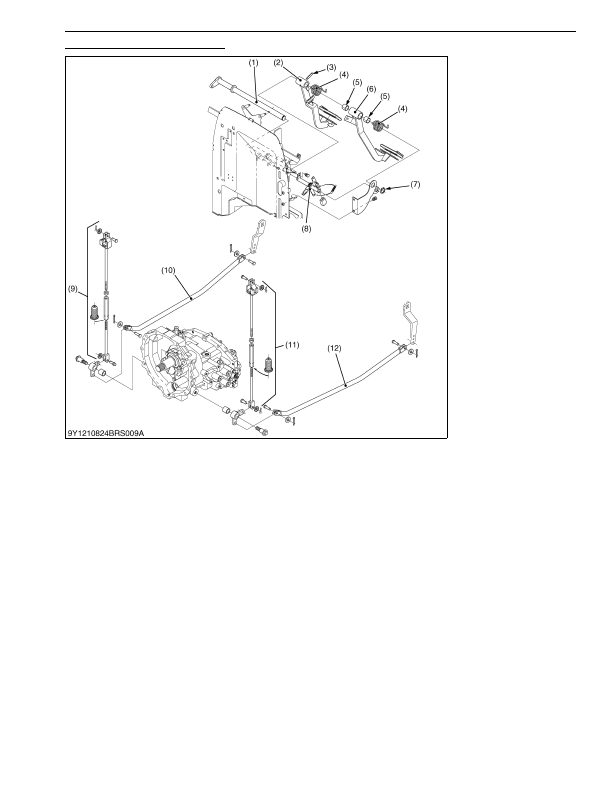

(1) Brake Pedal Shaft

(2) Brake Pedal RH

(3) Spring Pin

(4) Spring

(5) Bush

(6) Brake Pedal LH

(7) External Snap Ring

(8) Parking Brake Lever

(9) Brake Pedal Rod RH

(10) Brake Rod RH

(11) Brake Pedal Rod LH

(12) Brake Rod LH
