GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-19

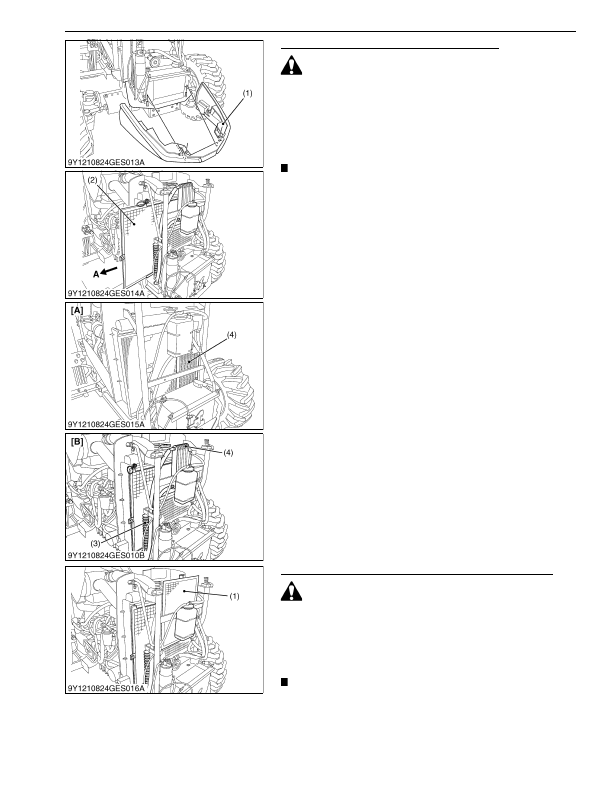

Cleaning Grill, Radiator Screen and Oil Cooler

 CAUTION

• Be sure to stop the engine before removing the screen.
• Before checking or cleaning the radiator screen, stop the

engine and wait long enough until it is cooled down.

1. Check front grill and side screens to be sure they are clean of

debris.

2. Detach the front skirt.

3. Detach the screen and remove all foreign materials.

IMPORTANT

• Grill and screen must be clean from debris to prevent

engine from overheating and to allow good air intake for
the air cleaner.

9Y1210824GEG0018US0

Cleaning Air Conditioner Condenser Screen (Cabin Type)

 CAUTION

• Be sure to stop the engine before removing the screen.
• The condenser and receiver become hot while the air

conditioner is running. Before checking or cleaning them,
wait enough until they cool down.

1. Detach  the  air  conditioner  condenser  screen  and  remove  all

foreign materials.

IMPORTANT

• Grill and screen must be clean from debris to prevent

engine from overheating and to allow good air intake for
the air cleaner.

9Y1210824GEG0019US0

(1) Front Skirt

(2) Radiator Screen

(3) Oil Cooler

(4) Fuel Cooler

[A] GST / Manual Transmission
[B] HST
A: DETACH

(1) Air Conditioner Condenser Screen

KiSC issued 03, 2016 A
