BRAKES

L3560, L4060, L4760, L5060, L5460, L6060, WSM

5-S14

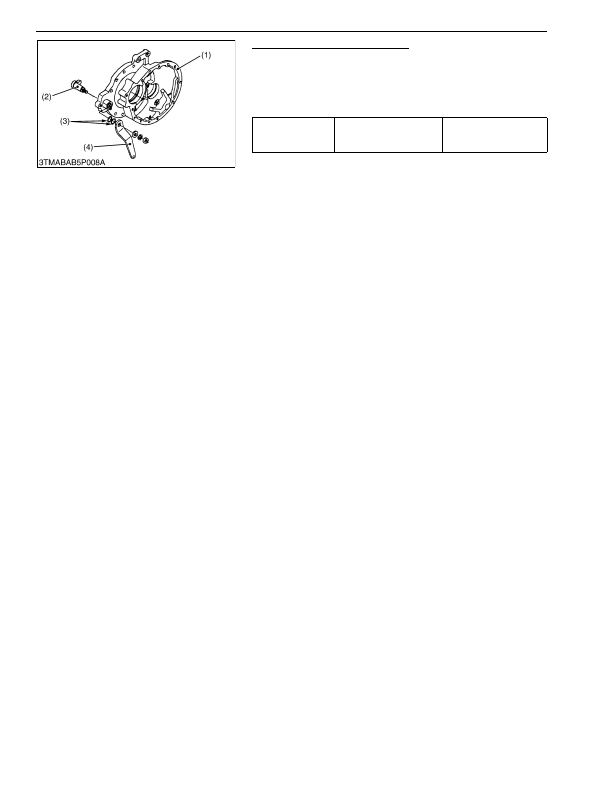

Brake Cam and Brake Cam Lever

1. Remove the brake cam mounting nut and remove the brake

cam (2) and brake cam lever (4).

(When reassembling)

• Apply grease to the O-ring (3) and be careful not damage the

O-ring.

9Y1210824BRS0011US0

Tightening torque

Brake cam lever mounting

nut

63 to 72 N·m

6.4 to 7.4 kgf·m

47 to 53 lbf·ft

(1) Brake Case

(2) Brake Cam

(3) O-ring

(4) Brake Cam Lever

KiSC issued 03, 2016 A
