FRONT AXLE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

6-M2

L4760, L5060, L5460 and L6060

9Y1210824FAM0003US0

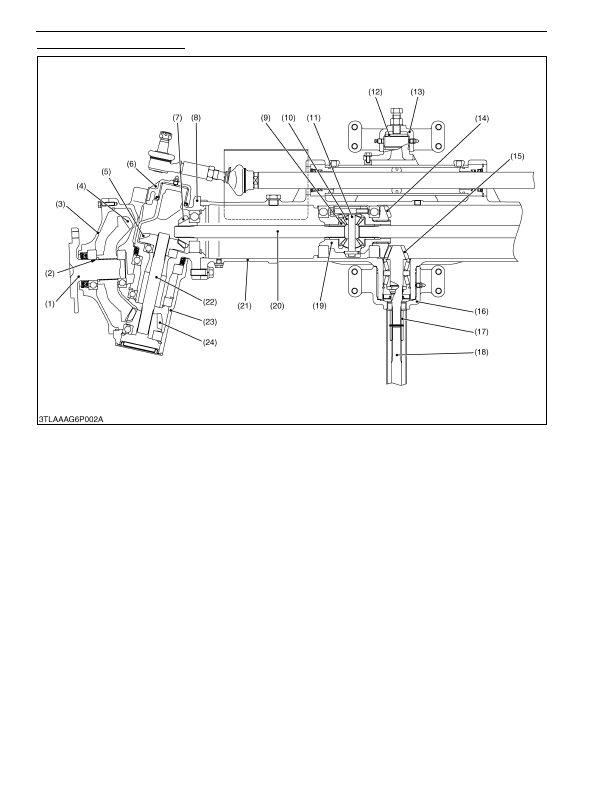

(1) Axle

(2) Collar

(3) Axle Flange

(4) Bevel Gear

(5) Bevel Gear

(6) Axle Case Support

(7) Bevel Gear

(8) Bevel Gear Case

(9) Differential Side Gear

(10) Differential Pinion

(11) Pinion Shaft

(12) Collar

(13) Front Axle Bracket, Front

(14) Spiral Bevel Gear

(15) Spiral Bevel Pinion Shaft

(16) Front Axle Bracket, Rear

(17) Coupling

(18) Propeller Shaft

(19) Differential Case

(20) Differential Yoke Shaft

(21) Front Axle Case

(22) Bevel Gear Shaft

(23) Front Gear Case

(24) Bevel Gear
