GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-20

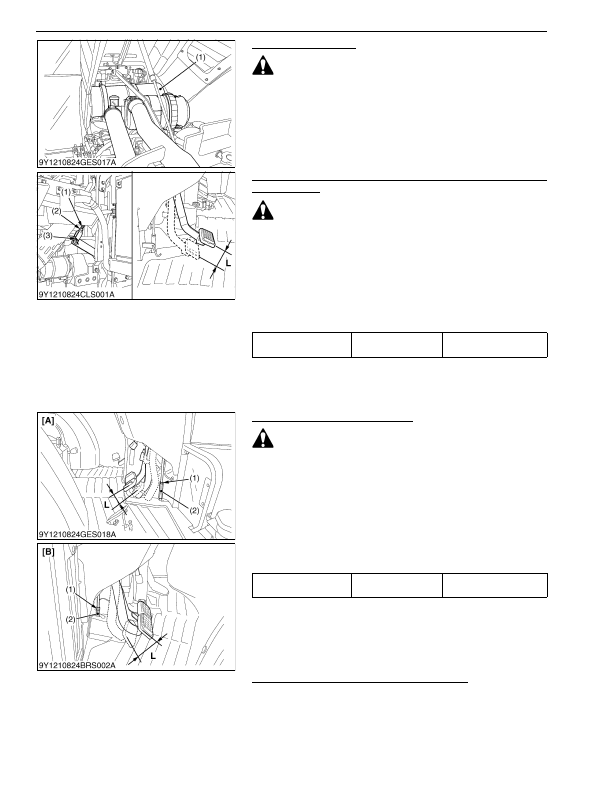

Checking DPF Muffler

CAUTION

• Before checking or cleaning the DPF muffler, stop the

engine and wait long enough until it is cooled down.

1. Check the DPF muffler and its surroundings for build-up of

anything flammable. Otherwise a fire may result.

9Y1210824GEG0020US0

Checking Clutch Pedal Free Travel (GST / Manual
Transmission)

CAUTION

• When checking, park the tractor on flat ground, apply the

parking brake, stop the engine and remove the key.

1. Stop the engine and remove the key.

2. Slightly depress the clutch pedal and measure free travel

"L"

at

top of clutch pedal.

3. If the measurement is not within the factory specifications,

loosen the lock nut (2), remove the clevis pin (3) adjust the

length of rod (1) within acceptable limits.

4. Retighten the lock nut (2) and split the cotter pin.

9Y1210824GEG0021US0

Checking Brake Pedal Free Travel

CAUTION

• Stop the engine and chock the wheels before checking

brake pedal.

1. Release the parking brake.

2. Slightly depress the brake pedal and measure free travel

"L"

at

top of pedal stroke.

3. If the measurement is not within the factory specifications,

loosen the lock nut (1) and turn the turnbuckle (2) to adjust the

rod length within acceptable limits.

4. Retighten the lock nut (1) securely.

Keep the free travel in the right and left brake pedals equal.

9Y1210824GEG0022US0

Checking Gauges, Meter and Easy Checker™

1. Inspect the instrument panel for broken gauge(s), meter(s) and

Easy Checker™.

2. Replace if broken.

9Y1210824GEG0023US0

(1) DPF Muffler

Clutch pedal free travel

"L"

Factory specification

20 to 30 mm

0.8 to 1.2 in.

(1) Clutch pedal Rod

(2) Lock Nut

(3) Clevis Pin

L:

Free Travel

Brake pedal free travel

"L"

Factory specification

15 to 20 mm

0.59 to 0.78 in.

(1) Lock Nut

(2) Turnbuckle

[A] GST / Manual Transmission
[B] HST
L:

Free Travel

KiSC issued 03, 2016 A
