FRONT AXLE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

6-S7

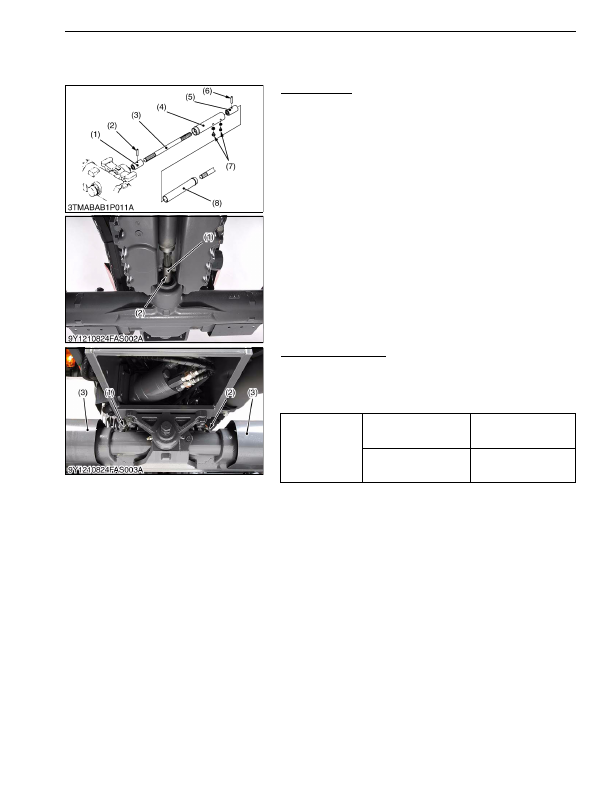

5. DISASSEMBLING AND ASSEMBLING

[1]  SEPARATING FRONT AXLE ASSEMBLY

Propeller Shaft

1. Slide the propeller shaft cover (4) and (8) after removing the

screws (7).

2. Tap out the spring pins (2), (6) and slide the couplings (1), (5)

and then remove the propeller shaft with covers (4), (8).

(When reassembling)

• Apply grease to the splines of propeller shaft (3).

9Y1210824FAS0009US0

Power Steering Hoses

1. Disconnect  the  power  steering  hoses  (1),  (2)  from  steering

cylinder.

2. Remove the cylinder cover (3).

(When reassembling)

9Y1210824FAS0010US0

(1) Coupling

(2) Spring Pin

(3) Propeller Shaft

(4) Propeller Shaft Cover

(5) Coupling

(6) Spring Pin

(7) Screws

(8) Propeller Shaft Cover

Tightening torque

Power steering hose

retaining nut

25 to 29 N·m

2.5 to 3.0 kgf·m

18 to 21 lbf·ft

Cylinder cover mounting

screw

61 to 70 N·m

6.2 to 7.2 kgf·m

45 to 52 lbf·ft

(1) Power Steering Hose, RH

(with Red Tape)

(2) Power Steering Hose, LH

(with Blue Tape)

(3) Cylinder Cover

KiSC issued 03, 2016 A
