FRONT AXLE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

6-S8

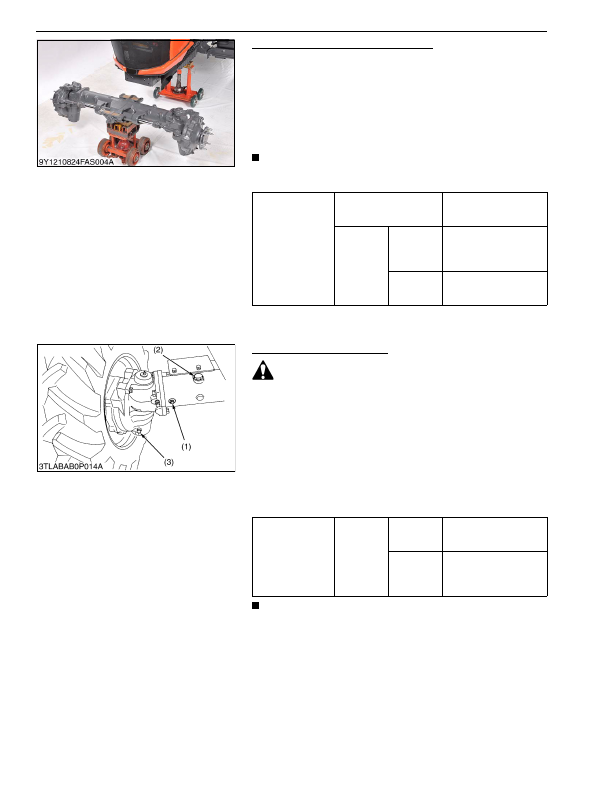

Front Wheel and Front Axle Assembly

1. Check the front axle and engine are securely mounted on the

disassembly stand.

2. Loosen the front wheel mounting nuts.

3. Lift the front axle and remove the front wheels.

4. Remove the bracket (front) mounting screws and nuts.

5. Remove the bracket (rear) mounting screws and nuts.

6. Separate the front axle from front axle bracket.

(When reassembling)

NOTE

• Be sure to adjust the front axle rocking force. (See page

6-S6.)

9Y1210824FAS0011US0

[2]  DISASSEMBLING FRONT AXLE

Draining Front Axle Case Oil

 CAUTION

• Be sure to stop the engine before changing the front axle

case oil.

• Allow engine to cool down sufficiently, oil can be hot and

can burn.

1. Remove the right and left drain plugs (3) and filling plug (2) at

the front axle case and drain the oil completely.

2. After draining, reinstall the drain plugs (3).

(When refilling)

• Remove the right and left check plugs (1).

• Fill new oil from filling port with specified amount of oil.

• Reinstall the filling plug (2) and check plug (1).

IMPORTANT

• Use KUBOTA SUPER UDT fluid or SAE80, 90 gear oil.

Refer to "4. LUBRICANTS, FUEL AND COOLANT" on page
G-9.

9Y1210824FAS0012US0

Tightening torque

Front wheel mounting nut

137 N·m

14.0 kgf·m

101 lbf·ft

Bracket

mounting

screw and

nut

L3560

L4060

L4760

L5060

78 to 90 N·m

7.9 to 9.2 kgf·m

58 to 66 lbf·ft

L5460

L6060

103 to 117 N·m

10.5 to 12.0 kgf·m

76.0 to 86.7 lbf·ft

Capacity

Front axle

case oil

L3560

L4060

6.5 L

6.9 U.S.qts

5.7 Imp.qts

L4760

L5060

L5460

L6060

8.5 L

9.0 U.S.qts

7.5 Imp.qts

(1) Check Plug

(2) Filling Plug

(3) Drain Plug

KiSC issued 03, 2016 A
