L3560,L4060,L4760,L5060,L5460,L6060
9 ELECTRICAL SYSTEM
background image

GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-21

Checking Head Light / Turn Signal / Hazard Light etc.

1. Inspect the light for broken bulbs and lenses.

2. Replace if broken.

9Y1210824GEG0024US0

Checking Seat Belt and ROPS

1. Always  check  condition  of  seat  belt  and  ROPS  attaching

hardware before operating tractor.

2. Replace if damaged.

9Y1210824GEG0025US0

Checking Movable Parts

1. If any of the movable parts, such as levers and pedals, is not

smoothly  moved  because  of  rust  or  anything  sticky,  do  not

attempt to force it into motion.

In the above case, remove the rust or the sticky thing, and apply

oil or grease on the relevant spot.

Otherwise, the machine may get damaged.

9Y1210824GEG0026US0

[2]  CHECK POINTS OF INITIAL 50 HOURS

Checking Clutch Pedal Free Travel (GST / Manual
Transmission)

1. See page G-20.

9Y1210824GEG0027US0

Changing Engine Oil

 CAUTION

• Be sure to stop the engine before changing the oil.
• Allow engine to cool down sufficiently, oil can be hot and

can burn.

1. To drain the used oil, remove the drain plug at the bottom of the

engine and drain the oil completely into the oil pan.

All the used oil can be drained out easily when the engine is still

warm.

2. After draining reinstall the drain plug.

3. Fill with the new oil up to the upper notch on the dipstick. (Refer

to "4. LUBRICANTS, FUEL AND COOLANT" on page G-9.)

IMPORTANT

• Use DPF-compatible oil (CJ-4) for the engine.

9Y1210824GEG0028US0

Engine oil capacity

(with filter)

L3560

6.7 L

7.1 U.S.qts

5.9 Imp.qts

L4060

L4760

8.2 L

8.7 U.S.qts

7.2 Imp.qts

L5060

L5460

L6060

9.4 L

9.9 U.S.qts

8.3 Imp.qts

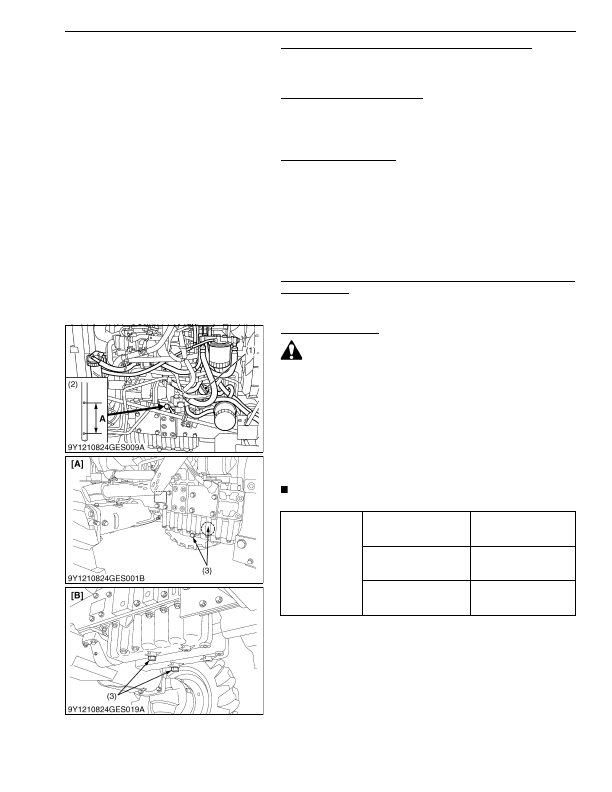

(1) Oil Inlet

(2) Dipstick

(3) Drain Plug

[A] L3560
[B] L4060, L4760, L5060, L5460,

L6060

A: Oil level is acceptable within this

range.
