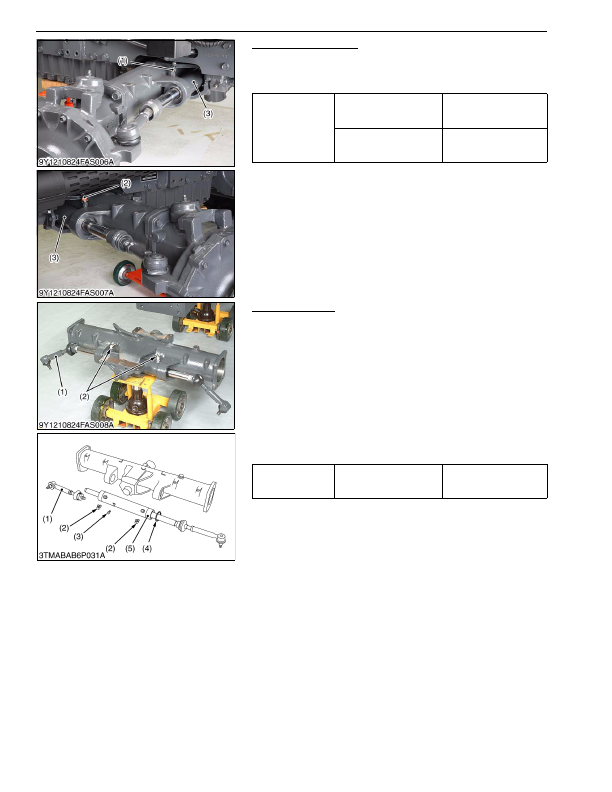

Power Steering Hoses

1. Disconnect the power steering hoses R.H. (1) and L.H. (2) from

steering cylinder (3).

(When reassembling)

9Y1210824FAS0020US0

Steering Cylinder

1. Support  the  engine  and  front  axle  case  by  disassembling

stands.

2. Remove the bracket mounting screw and nut, and remove the

front axle case.

3. Remove the tie-rod joint (1) (right side).

4. Remove the cylinder set screw (3).

5. Remove the fittings (2) from steering cylinder.

6. Remove the internal snap ring (4).

7. Draw out the steering cylinder (5).

(When reassembling)

• Apply liquid lock (Three Bond 1324 or equivalent) to the tie-rod

joint.

9Y1210824FAS0021US0

Tightening torque

Power steering hose

retaining nut

25 to 29 N·m

2.5 to 3.0 kgf·m

18 to 21 lbf·ft

Cylinder cover mounting

screw

61 to 70 N·m

6.2 to 7.2 kgf·m

45 to 52 lbf·ft

(1) Power Steering Hose R.H.

(2) Power Steering Hose L.H.

(3) Steering Cylinder

Tightening torque

Tie-rod joint to steering

cylinder

167 to 196 N·m

17.0 to 20.0 kgf·m

123 to 144 lbf·ft

(1) Tie-rod Joint

(2) Fitting

(3) Cylinder Set Screw

(4) Internal Snap Ring

(5) Steering Cylinder
