FRONT AXLE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

6-S15

6. SERVICING

Clearance between Differential Case (Differential Case Cover)
and Differential Side Gear

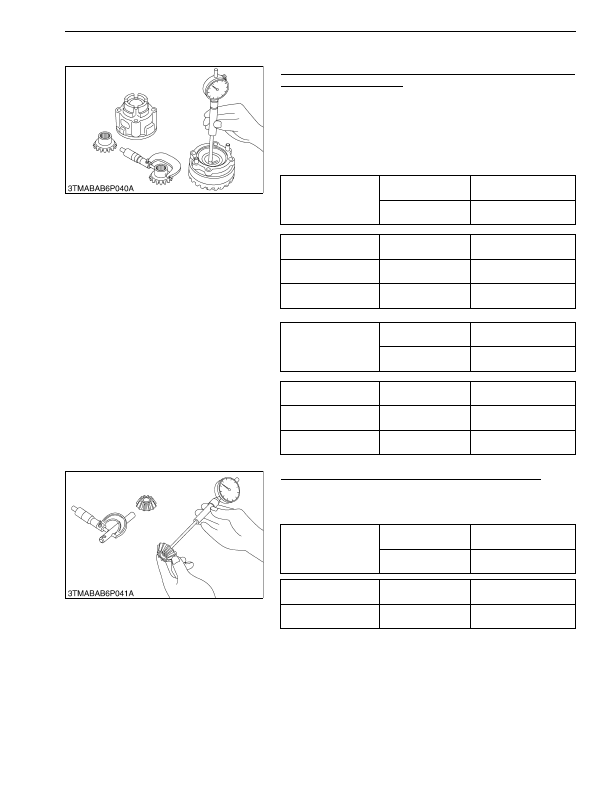

1. Measure the differential side gear O.D..

2. Measure the differential case bore I.D. and calculate the

clearance.

3. Measure the differential case cover bore I.D. and calculate the

clearance.

4. If the clearance exceeds the allowable limit, replace faulty parts.

(L3560 and L4060)

(L4760, L5060, L5460 and L6060)

9Y1210824FAS0024US0

Clearance between Pinion Shaft and Differential Pinion

1. Measure the pinion shaft O.D.

2. Measure the differential pinion I.D. and calculate the clearance.

3. If the clearance exceeds the allowable limit, replace faulty parts.

9Y1210824FAS0025US0

Clearance between

differential case

(differential case cover)

and differential side gear

Factory specification

0.050 to 0.151 mm

0.0020 to 0.00594 in.

Allowable limit

0.20 mm

0.0079 in.

Differential case bore

I.D.

Factory specification

32.000 to 32.062 mm

1.2599 to 1.2622 in.

Differential case cover

bore I.D.

Factory specification

32.000 to 32.025 mm

1.2599 to 1.2608 in.

Differential side gear

O.D.

Factory specification

31.911 to 31.950 mm

1.2564 to 1.2578 in.

Clearance between

differential case

(differential case cover)

and differential side gear

Factory specification

0.050 to 0.114 mm

0.0020 to 0.00448 in.

Allowable limit

0.20 mm

0.0079 in.

Differential case bore

I.D.

Factory specification

32.000 to 32.025 mm

1.2599 to 1.2608 in.

Differential case cover

bore I.D.

Factory specification

32.000 to 32.025 mm

1.2599 to 1.2608 in.

Differential side gear

O.D.

Factory specification

31.911 to 31.950 mm

1.2564 to 1.2578 in.

Clearance between

pinion shaft and

differential pinion

Factory specification

0.064 to 0.100 mm

0.0026 to 0.00393 in.

Allowable limit

0.25 mm

0.0098 in.

Pinion shaft O.D.

Factory specification

13.950 to 13.968 mm

0.54922 to 0.54992 in.

Differential pinion I.D.

Factory specification

14.032 to 14.050 mm

0.55244 to 0.55314 in.
