FRONT AXLE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

6-S20

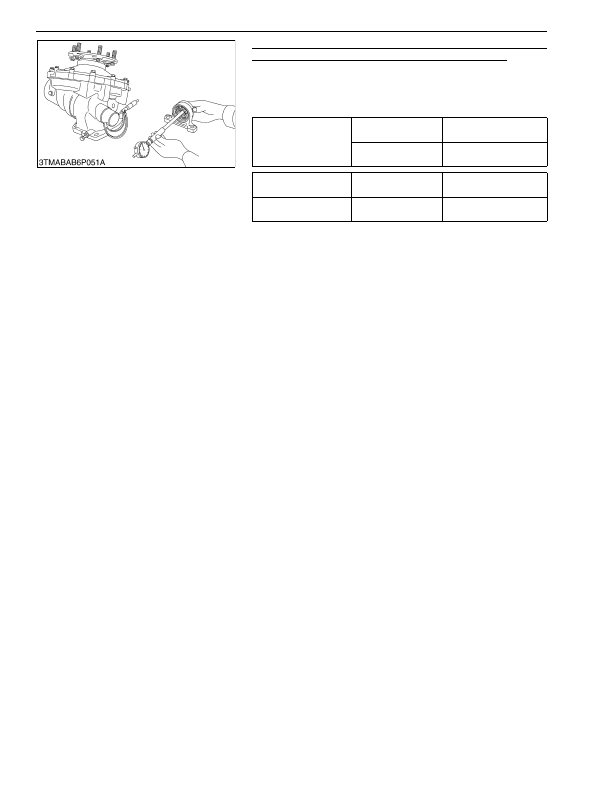

Clearance between Bevel Gear Case Boss and Front Axle
Support Bushing (for L4760, L5060, L5460 and L6060)

1. Measure the bevel gear case boss O.D. with an outside

micrometer.

2. Measure the support bushing I.D. and calculate the clearance.

3. If the clearance exceeds the allowable limit, replace it.

9Y1210824FAS0032US0

Clearance between

bevel gear case boss

and front axle support

bushing

Factory specification

0.080 to 0.248 mm

0.0032 to 0.00976 in

Allowable limit

1.0 mm

0.039 in.

Bevel gear case boss

O.D.

Factory specification

54.970 to 55.000 mm

2.1642 to 2.1653 in.

Front axle support

bushing I.D.

Factory specification

55.080 to 55.218 mm

2.1685 to 2.1739 in.

KiSC issued 03, 2016 A
