Left Turn; Pump Port; Tank Port- Page 517

STEERING

L3560, L4060, L4760, L5060, L5460, L6060, WSM

7-M5

Left Turn

The steering system operates in the same way at a

left-turn  as  well,  except  that  oil  flows  into  and  out  of

steering cylinder (4) in the directions opposite to those at

a right-turn.

9Y1210824STM0006US0

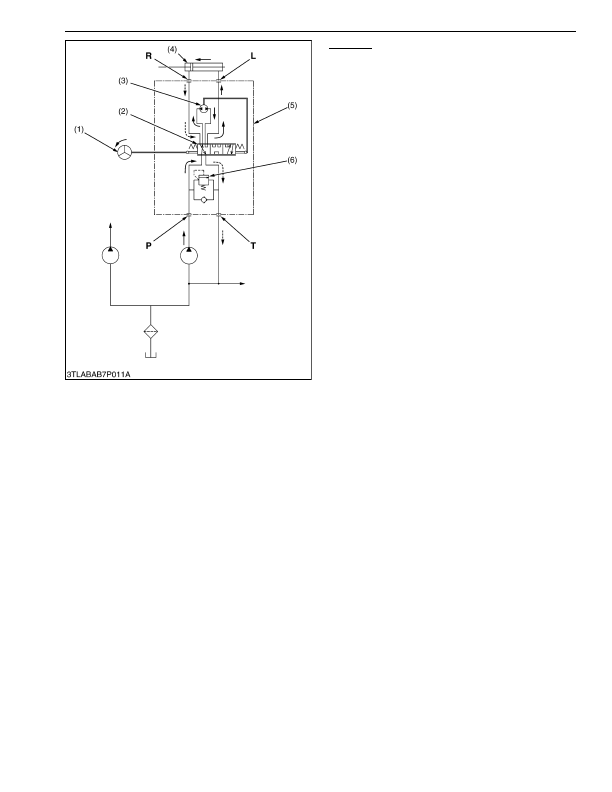

(1) Steering Wheel

(2) Valve Plate

(3) Gerotor

(4) Steering Cylinder

(5) Steering Controller

(6) Relief Valve

P:

Pump Port

T:

Tank Port

R: Cylinder Port R
L:

Cylinder Port L
