STEERING

L3560, L4060, L4760, L5060, L5460, L6060, WSM

7-M6

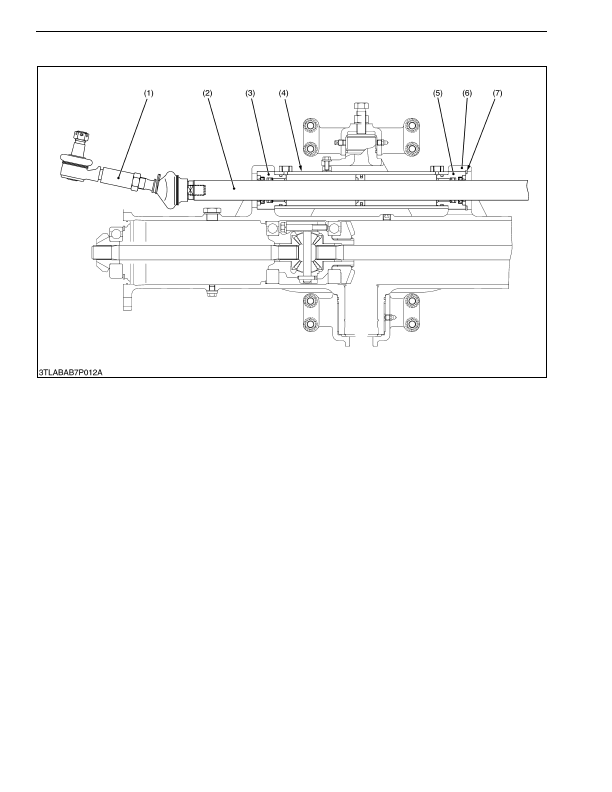

5. STEERING CYLINDER

The steering cylinder is single piston both rod double-acting type. This steering cylinder is installed parallel to the

front axle and connected to tie-rods (1).

The tie-rods (1) connected to both knuckle arm guarantees equal steering movement to both front wheels.

The steering cylinder provides force in both directions. Depending upon direction the steering wheel is turned

pressure oil enters at one end of the cylinder to extend, or the other end to retract it, thereby turning front wheel of

the tractor.

9Y1210824STM0007US0

(1) Tie-rod

(2) Piston Rod

(3) Head Cover

(4) Cylinder Tube

(5) Head Cover

(6) Front Axle Case

(7) Internal Snap Ring

KiSC issued 03, 2016 A
