[3]  CHECK POINTS OF EVERY 50 HOURS

Checking Engine Start System

 CAUTION

To avoid personal injury:

• Do not allow anyone near the tractor while testing.
• If the tractor does not pass the test, do not operate the

tractor.

Preparation before testing.

1. Place all control levers in the

"NEUTRAL"

 position.

2. Set the parking brake and stop the engine.

[GST / Manual Transmission]

Test: Switch for the shuttle shift lever.

1. Sit on the operator's seat

2. Shift the shuttle shift lever to the forward or reverse position.

3. Depress the clutch pedal fully.

4. Disengage the PTO clutch control switch or lever.

5. Turn the key to

"START"

 position.

6. The engine must not crank.

Test: Switch for the PTO clutch control switch or lever.

1. Sit on the operator's seat.

2. Engage the PTO clutch control switch or lever.

3. Depress the clutch pedal fully.

4. Shift the shuttle shift lever to the neutral position.

5. Turn the key to

"START"

 position.

6. The engine must not crank.

[HST]

Test: Switch for the speed control pedal.

1. Sit on the operator's seat.

2. Depress the speed control pedal to the desired direction.

3. Disengage the PTO clutch control switch or lever.

4. Turn the key to

"START"

 position.

5. The engine must not crank.

Test: Switch for the PTO clutch control switch or lever.

1. Sit on the operator's seat.

2. Engage the PTO clutch control switch or lever.

3. Place the speed control pedal in neutral position.

4. Turn the key to

"START"

 position.

5. The engine must not crank.

9Y1210824GEG0031US0

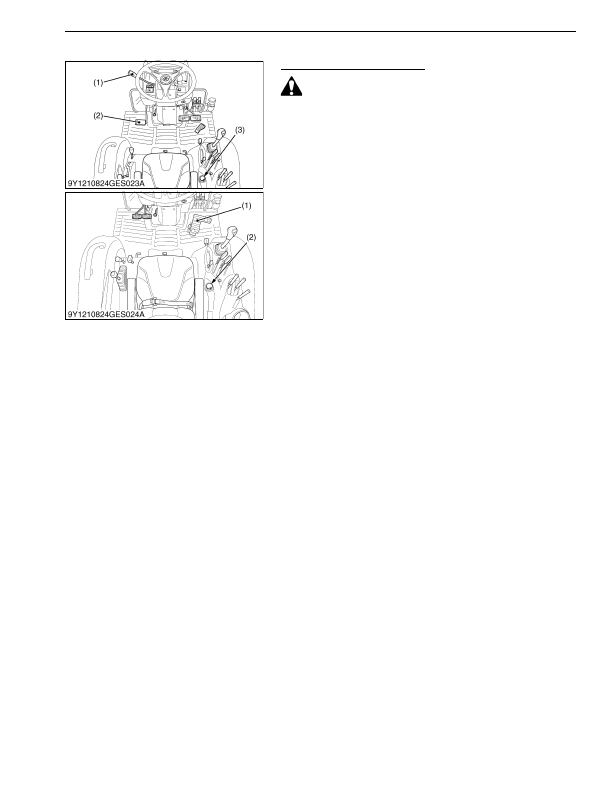

(1) Shuttle Shift Lever

(2) Clutch Pedal

(3) PTO Clutch Control Switch
