STEERING

L3560, L4060, L4760, L5060, L5460, L6060, WSM

7-S4

4.  CHECKING AND ADJUSTING

[1] STEERING CONTROLLER

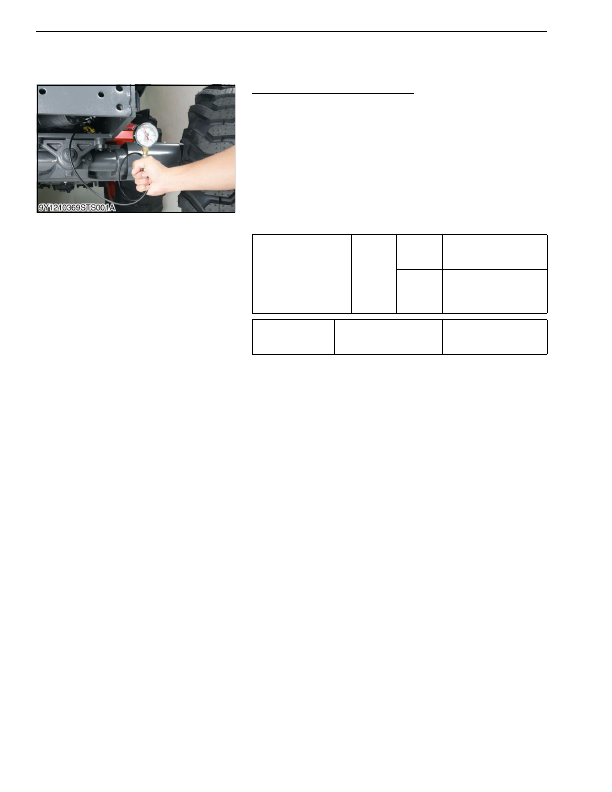

Relief Valve Setting Pressure Test

1. Disconnect the power steering hose L.H..

2. Install  the  power  steering  tee  fitting  adaptor  to  the  steering

cylinder and connect the power steering hose L.H..

3. Install the adaptor

D

 to the power steering tee fitting adaptor and

set the cable and pressure gauge.

4. Start the engine and set the engine speed at maximum speed.

5. Fully turn the steering wheel to the left and read the pressure

when the relief valve functions.

6. Stop the engine.

7. If the pressure is not within the factory specifications, check the

pump delivery line or replace the steering controller assembly.

Condition

• Engine speed

Maximum

• Oil temperature

40 to 60 °C (104 to 140 °F)

9Y1210824STS0004US0

Power steering relief

valve setting pressure

Factory

specifica-

tion

L3560

L4060

10.7 to 11.7 MPa

110 to 119 kgf/cm

2

1560 to 1690 psi

L4760

L5060

L5460

L6060

12.7 to 13.7 MPa

130 to 139 kgf/cm

2

1850 to 1980 psi

Tightening torque

Power steering hose

retaining nut

25 to 29 N·m

2.5 to 3.0 kgf·m

18 to 21 lbf·ft

KiSC issued 03, 2016 A
