STEERING

L3560, L4060, L4760, L5060, L5460, L6060, WSM

7-S8

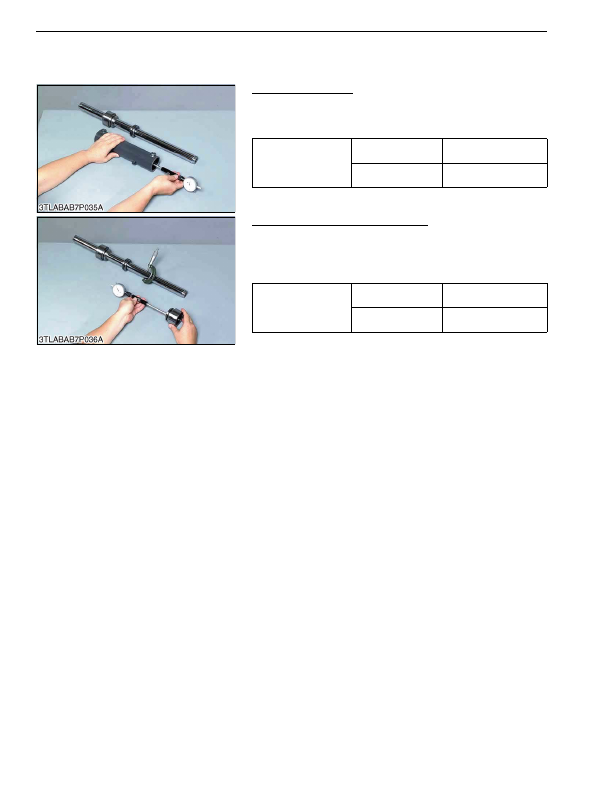

6. SERVICING

[1] STEERING CYLINDER

Steering Cylinder I.D.

1. Measure the steering cylinder I.D. with a cylinder gauge.

2. If  the  cylinder  I.D.  exceed  the  allowable  limit,  replace  the

cylinder tube.

9Y1210824STS0012US0

Clearance between Rod and Bushing

1. Measure the bushing I.D. with a cylinder gauge.

2. Measure the rod O.D. with a outside micrometer, and calculate

the clearance.

3. If the clearance exceeds the allowable limit, replace as a unit.

9Y1210824STS0013US0

Steering cylinder I.D.

Factory specification

55.000 to 55.074 mm

2.1654 to 2.1682 in.

Allowable limit

55.100 mm

2.1693 in.

Clearance between rod

and bushing

Factory specification

0.00900 to 0.127 mm

0.000355 to 0.00500 in.

Allowable limit

0.135 mm

0.00531 in.

KiSC issued 03, 2016 A
