HYDRAULIC SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

8-M2

[2] HYDROSTATIC TRANSMISSION

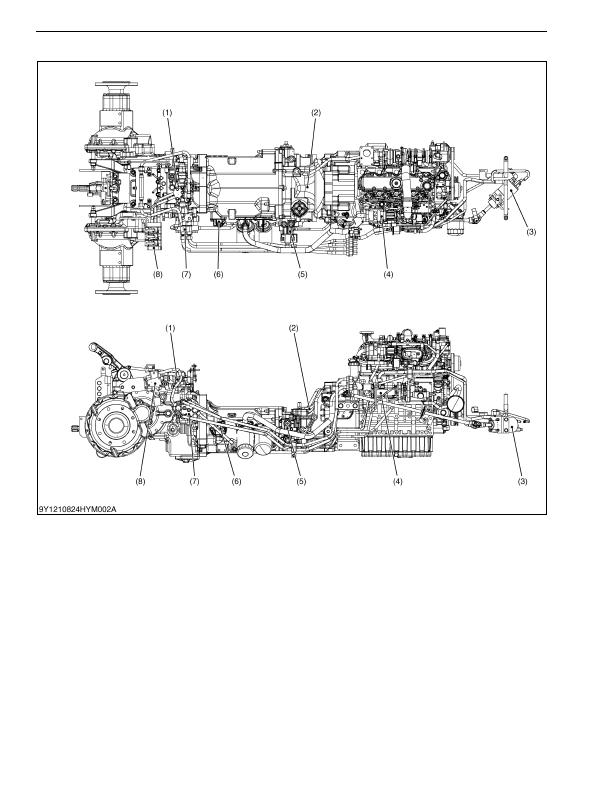

The hydraulic system of machine consists of a hydraulic pump (4), front loader control valve (7), hydraulic cylinder

and other components.

9Y1210824HYM0002US0

(1) Hydraulic Block

(2) HST Unit

(3) Power Steering Cylinder

(4) Hydraulic Pump

(5) Regulating Valve

(6) PTO Solenoid Valve

(7) Front Loader Control Valve

(8) Auxiliary Control Valve

(If Equipped)
