2. HYDRAULIC CIRCUIT

[1] MANUAL TRANSMISSION

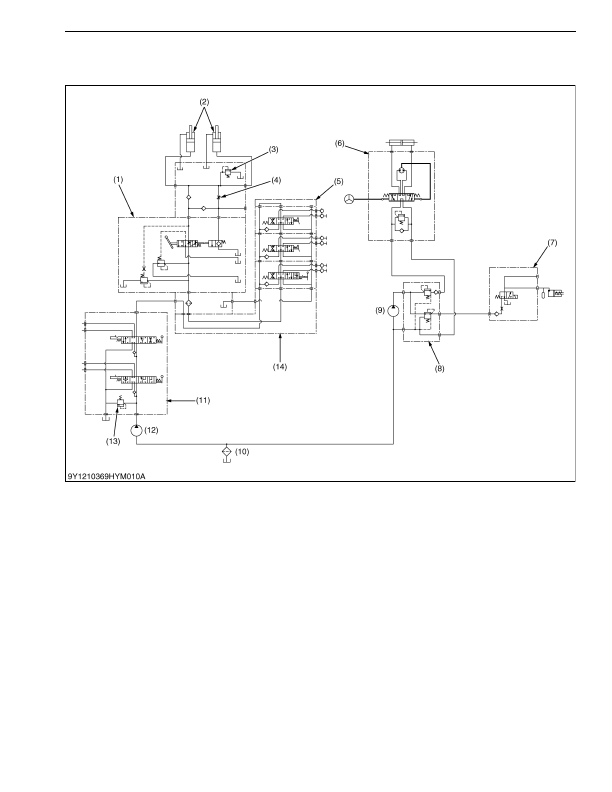

Hydraulic oil operates power steering controller (6), PTO clutch valve (7) and 3 point hitch.

9Y1210824HYM0003US0

(1) Position Control Valve

(2) Hydraulic Cylinder

(3) Cylinder Safety Valve

(4) Lowering Speed Adjusting

Valve

(5) Auxiliary Control Valve

(6) Power Steering Controller

(7) PTO Clutch Valve

(8) Regulating Valve

(9) Hydraulic Pump 2

(10) Oil Filter

(11) Front Loader Control Valve

(12) Hydraulic Pump 1

(13) Relief Valve

(14) Rear Hydraulic Block
