L3560, L4060, L4760, L5060, L5460, L6060, WSM

8-M4

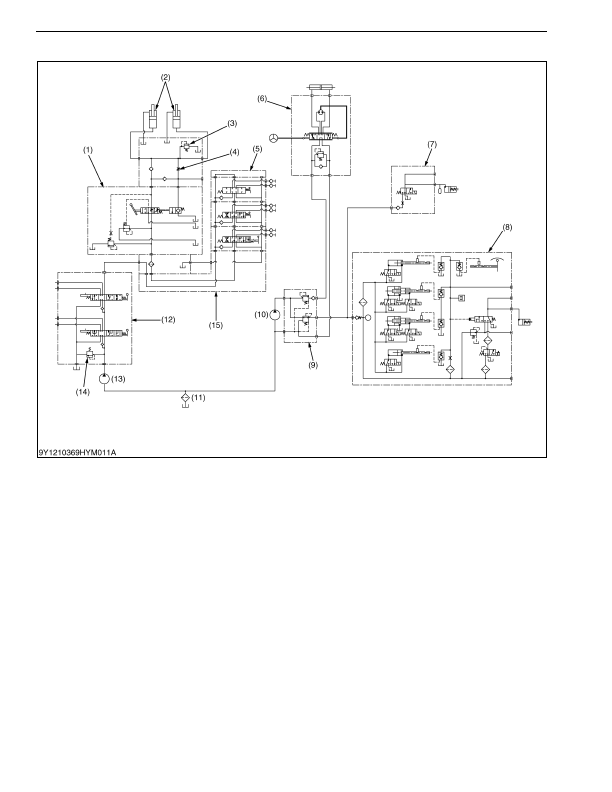

[2] GLIDE SHIFT TRANSMISSION (GST)

Hydraulic oil operates GST valve assembly (8), power steering controller (6), PTO clutch valve (7) and 3 point

hitch.

9Y1210824HYM0004US0

(1) Position Control Valve

(2) Hydraulic Cylinder

(3) Cylinder Safety Valve

(4) Lowering Speed Adjusting

Valve

(5) Auxiliary Control Valve

(6) Power Steering Controller

(7) PTO Clutch Valve

(8) GST Valve Assembly

(9) Regulating Valve

(10) Hydraulic Pump 2

(11) Oil Filter

(12) Loader Control Valve

(13) Hydraulic Pump 1

(14) Relief Valve

(15) Rear Hydraulic Block

KiSC issued 03, 2016 A
