HYDRAULIC SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

8-M5

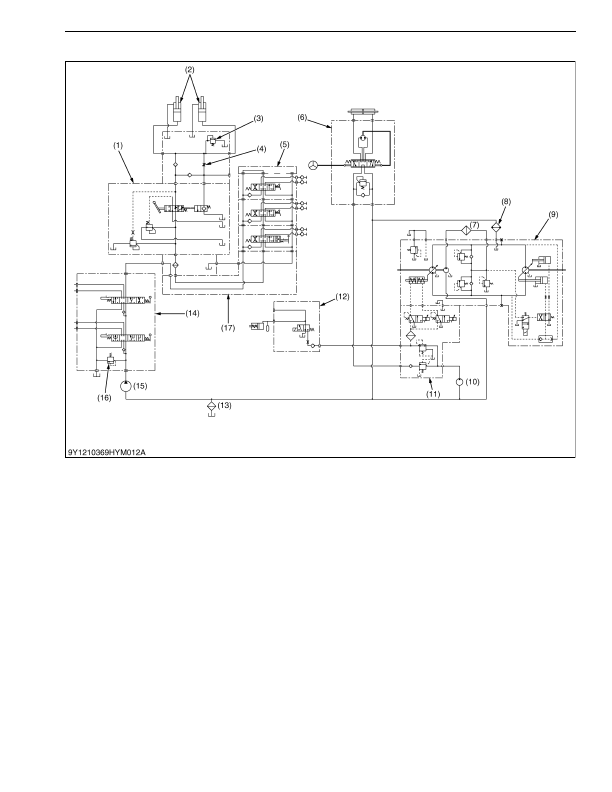

[3] HYDROSTATIC TRANSMISSION (HST)

Hydraulic oil operates hydrostatic transmission (HST) (9), power steering controller (6), PTO clutch valve (12) and

3 point hitch.

9Y1210824HYM0005US0

(1) Position Control Valve

(2) Hydraulic Cylinder

(3) Cylinder Safety Valve

(4) Lowering Speed Adjusting

Valve

(5) Auxiliary Control Valve

(6) Power Steering Controller

(7) Oil Filter

(8) Oil Cooler

(9) Hydrostatic Transmission

(HST)

(10) Hydraulic Pump 2

(11) Regulating Valve

(12) PTO Clutch Valve

(13) Oil Filter

(14) Front Loader Control Valve

(15) Hydraulic Pump 1

(16) Relief Valve

(17) Rear Hydraulic Block

KiSC issued 03, 2016 A
