HYDRAULIC SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

8-M6

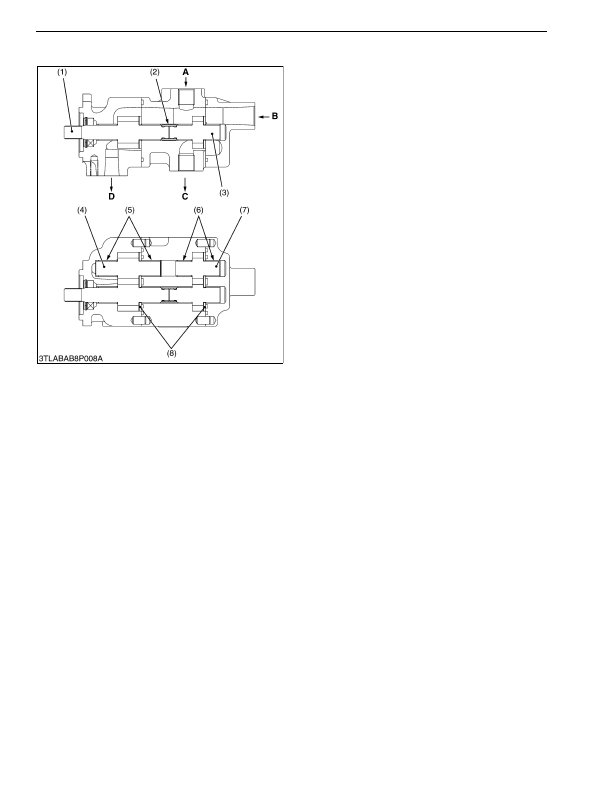

3. HYDRAULIC PUMP

The gear type hydraulic pump is adopted for these

tractor. This pump is tandem type consists of two pair of

gears, side plates, bushings and other components as

shown in the figure.

The hydraulic pump pressure-fed the oil drawn from

the transmission case through oil filter to power steering

circuit and main hydraulic circuit.

9Y1210824HYM0006US0

(1) Drive Gear 1

(2) Coupling

(3) Drive Gear 2

(4) Driven Gear 1

(5) Bushing

(6) Bushing

(7) Driven Gear 2

(8) Side Plate

A: From Power Steering

Controller

B: From Transmission Case
C: To Power Steering

Controller

D: To Main Hydraulic Circuit

KiSC issued 03, 2016 A
