GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-25

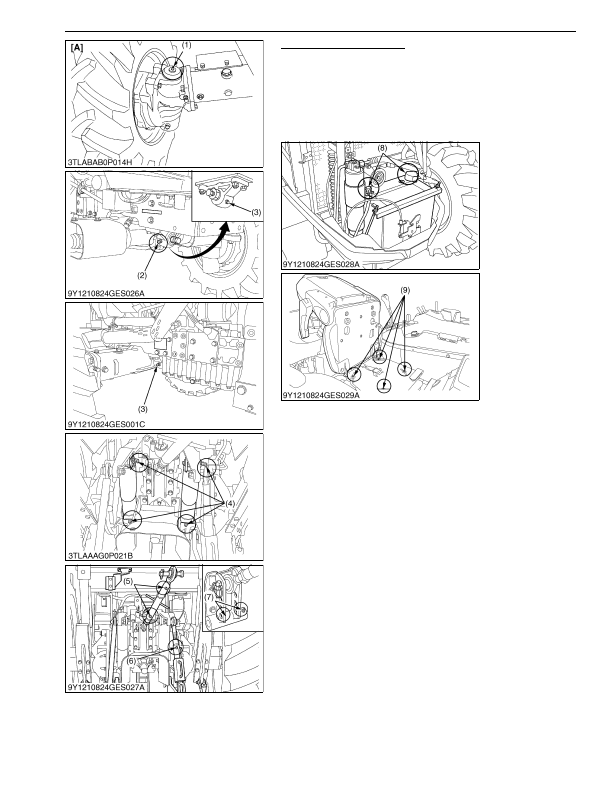

Lubricating Grease Fitting

1. Apply a small amount of multipurpose grease to the following

points every 50 hours.

If you operated the machine in extremely wet and muddy

conditions, lubricate grease fittings more often.

2. When apply a grease to forward front axle support, remove the

breather plug and apply a grease until grease overflows from

breather plug port. After greasing reinstall the breather plug.

9Y1210824GEG0036US0

(1) Grease Fitting (Front Wheel Case

Support RH, LH)

(2) Grease Fitting (Front Axle Support)

(3) Breather Plug

(4) Grease Fitting (Lift Cylinder)

(5) Grease Fitting (Top Link)

(6) Grease Fitting (Lifting Rod RH)

(7) Grease Fitting (Top Link Bracket)

(8) Battery Terminal

(9) Swivel Seat

[A] L4760, L5060, L5460, L6060

KiSC issued 03, 2016 A
