HYDRAULIC SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

8-M12

[6] HYDRAULIC CYLINDER

The external type hydraulic cylinders are used for

three point linkage system. This hydraulic cylinder is

single acting type, and it is installed directly between

hydraulic lift arm and lower link.

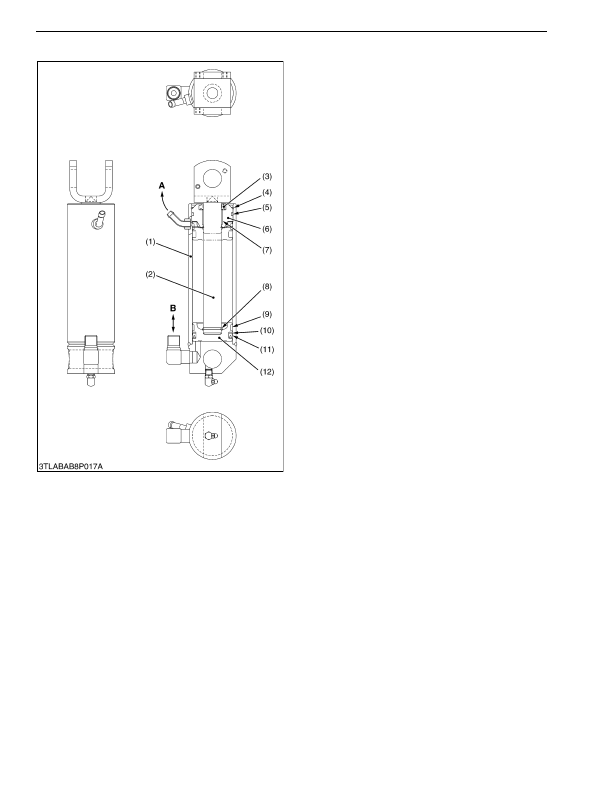

The main components of the hydraulic cylinder are

shown in the figure.

9Y1210824HYM0015US0

(1) Cylinder Tube

(2) Rod

(3) Wiper

(4) Snap Ring

(5) O-ring

(6) Head

(7) Bushing

(8) Snap Ring

(9) Bearing Ring

(10) Backup Ring

(11) Seal

(12) Piston

A: To Transmission Case
B: To or From Position

Control Valve
