HYDRAULIC SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

8-M14

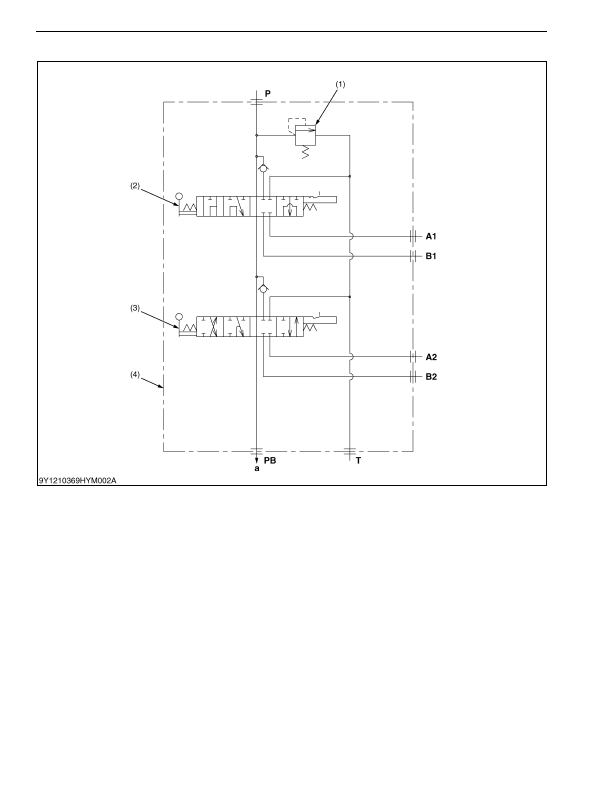

[2] FRONT LOADER HYDRAULIC CIRCUIT

9Y1210824HYM0017US0

(1) Relief Valve

(2) Boom Control Valve

(3) Bucket Control Valve

(4) Front Loader Control Valve

P:

Pump Port

T:

Tank Port

A1: A1 Port
A2: A2 Port
B1: B1 Port
B2: B2 Port
PB: Power Beyond Port

a:

To Hydraulic Block
